Built-in body for shower/bath, thermostatic or mechanical mixers
Management 3 outlets, installation depth 75-105 mm
Brand Grohe 35 604 000
Description

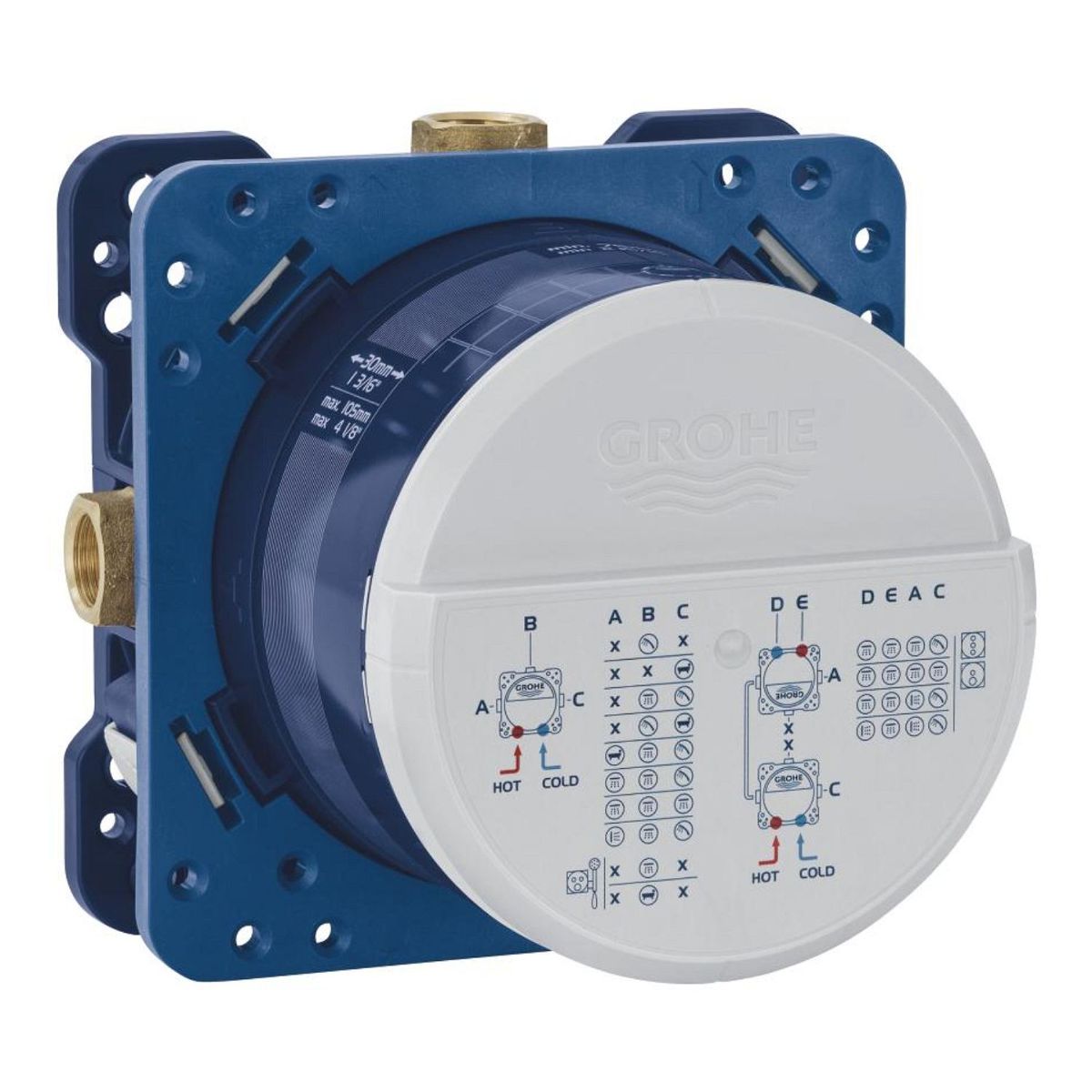

The cutting-edge universal built-in body for concealed installation of shower and bathtub mixers. This body allows you to manage up to three outlets (e.g., a two-jet shower head or hand shower) with a single exposed part, eliminating the need to install multiple separate built-in bodies.
Designed to be ultra-slim, with an installation depth ranging from just 75 to 105 mm, it easily fits even thin walls. It features three 1/2" outlets and two 1/2" bottom inlets, all with DR (dezincification resistant) brass fittings to ensure durability and reliability.
When renovating a bathroom or building a new one, it's essential to choose a reliable, trouble-free built-in unit, because the only solution to address a problem is to remove the entire wall to reach it.

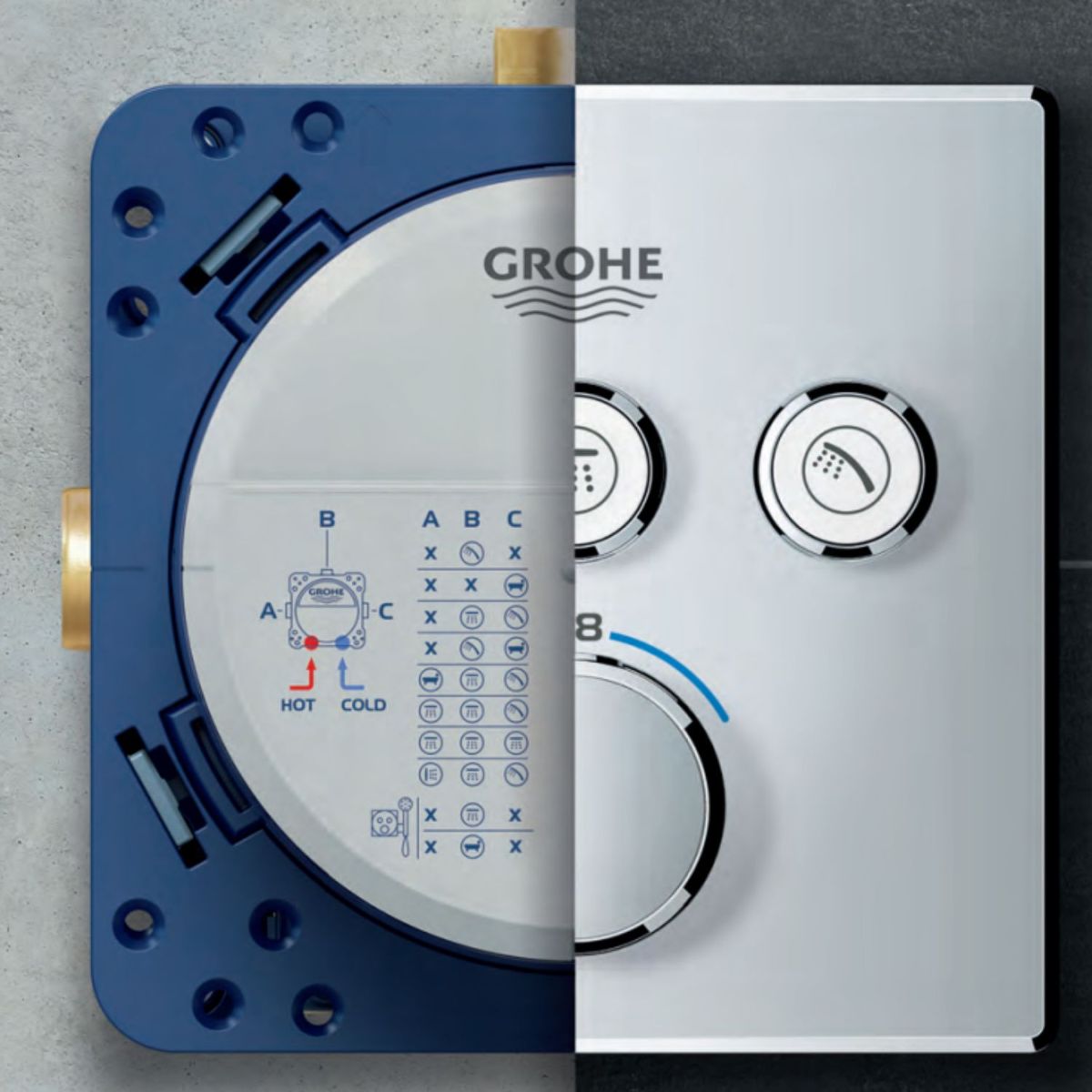

The Grohe Rapido SmartBox is universal, compatible with all Grohe SmartControl trim plates and thermostatic or single-lever mixers, offering complete freedom in choosing the design and functions of the external part, even at a later date.
Datasheet
• Manages up to three users with a single 1/2" external part
• Ultra slim installation depth 75-105 mm
• Efficient installation with 1/2" bottom-positioned inlets
• For masonry
• Use is possible with pressure accumulators, instantaneous water heaters, hydraulic/thermal regulated water heaters
• Max. operating pressure 10 bar
• Test pressure 16 bar
• To maintain noise emissions with static pressures above 5 bar, a pressure reducer must be installed
• If the body is installed for a bathtub it must be at least 300 mm above the edge of the bathtub; if a filling and overflow set is used,
Package Contents:
• 1 Rapido SmartBox Universal built-in body

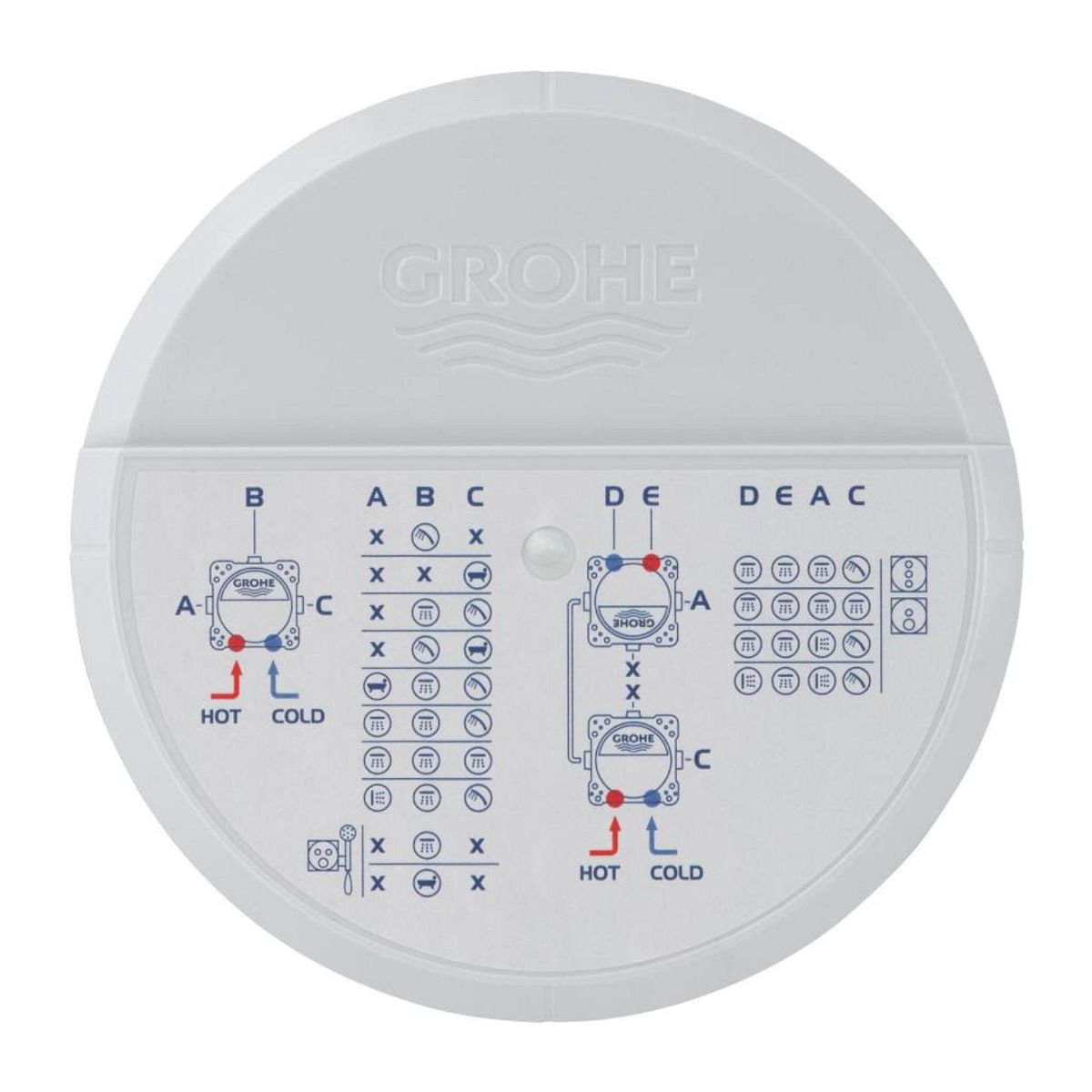

• Assembly template
• Technical and installation manual
Excluding any extension sets or other accessories
