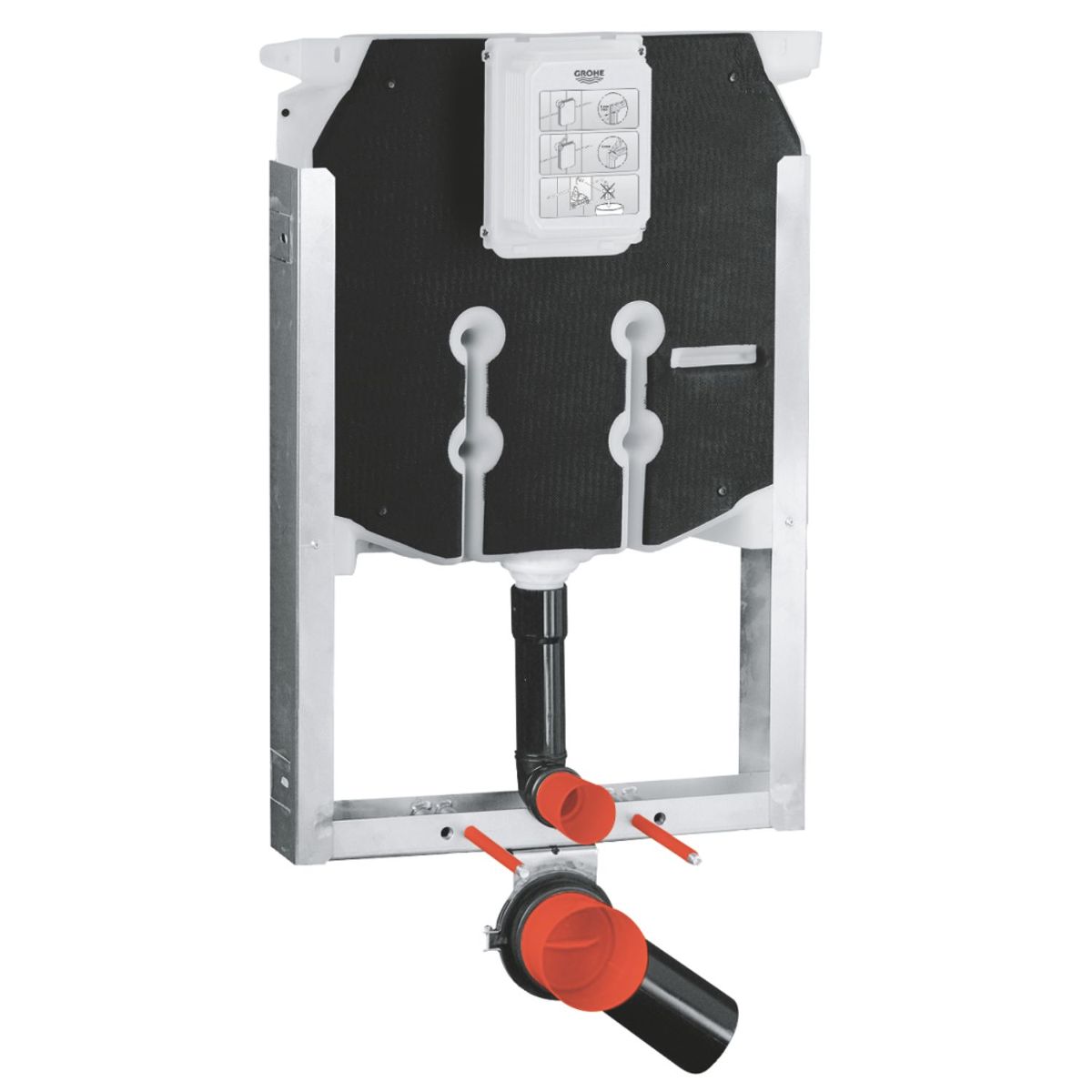

Uniset 8cm thick built-in toilet cistern for wall-hung sanitary ware
Grohe 38 729 000
Description
Whether it's a new build or a renovation project, the Grohe Uniset cistern for wall-hung toilets is the innovative, modern space-saving solution, ideal for built-in installations in bathrooms where depth is limited, thanks to its thickness of just 80 mm.
Uniset is the ideal system for traditional masonry work, where speed is essential,
But great flexibility is required for different system types. Designed to maximize efficiency and reduce space, this cistern offers reliable performance and a discreet design. Made of PE (polyethylene) with a vinyl resin coating, the cistern guarantees durability and resistance over time. The water inlet is from the top, and the inlet valve is designed to be low-noise, contributing to a quieter bathroom environment.
The functional heart of this cistern is the AV1 flush valve, which offers remarkable versatility in actuation types for greater water savings. The first is the Dual Flush, which allows you to choose between a full flush (6-9 liters, adjustable) or a reduced flush (3 liters). The second is the Start/Stop, where the user can interrupt the flow of water by pressing the flush button again.
With this toilet cistern it is possible to install the control plates only vertically (not included, to be purchased separately) and the GROHE Fresh system (not included but to be purchased separately), the innovative system for sanitising the hidden WC.
Datasheet
• Adjustable flow
• AV1 flush valve with 3 types of operation: dual flush, start/stop and single flush
• Inlet and outlet connection set

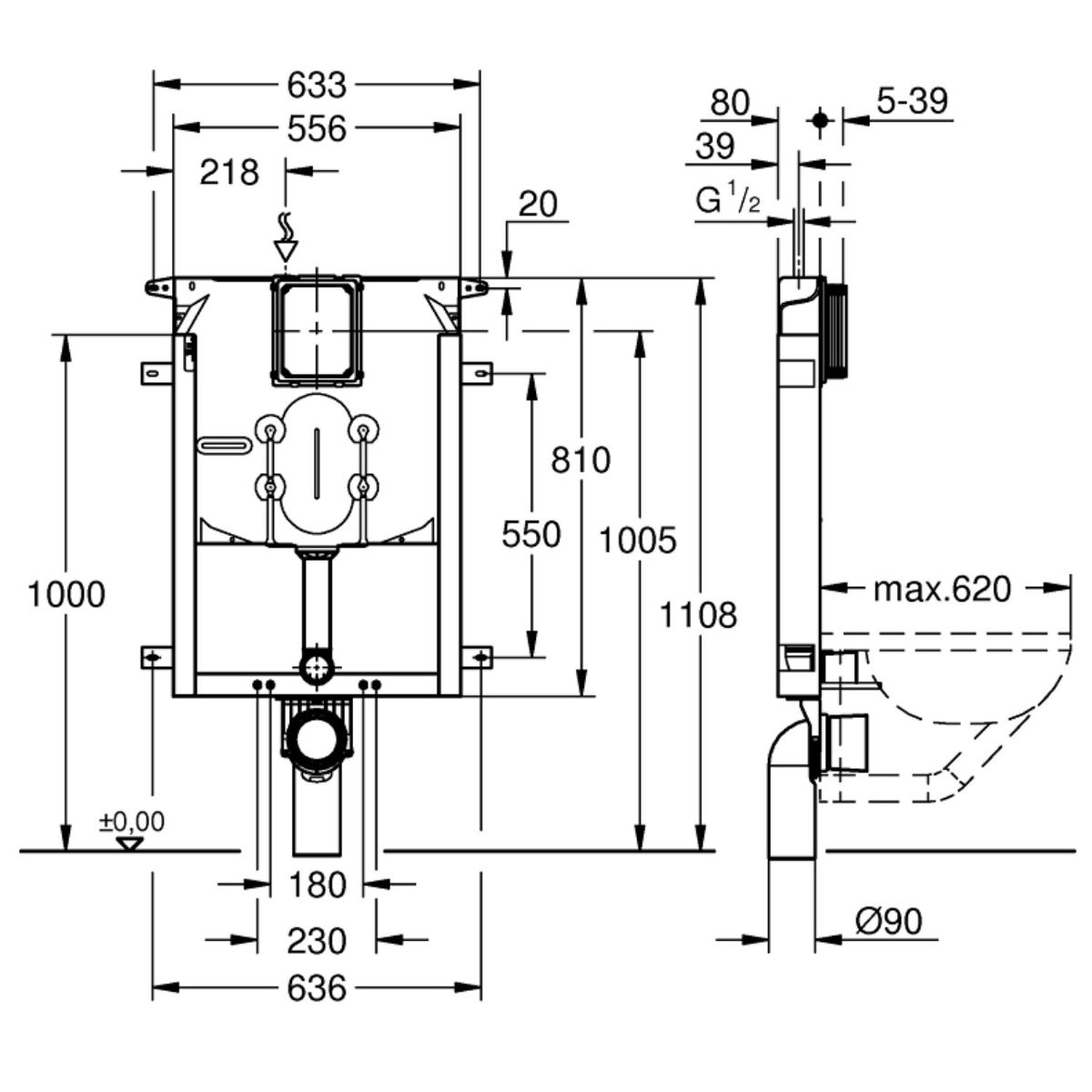

• Distance between fixing nuts 180/230 mm
• Low noise (I soundproofing group)
• PE box with vinyl resin coating

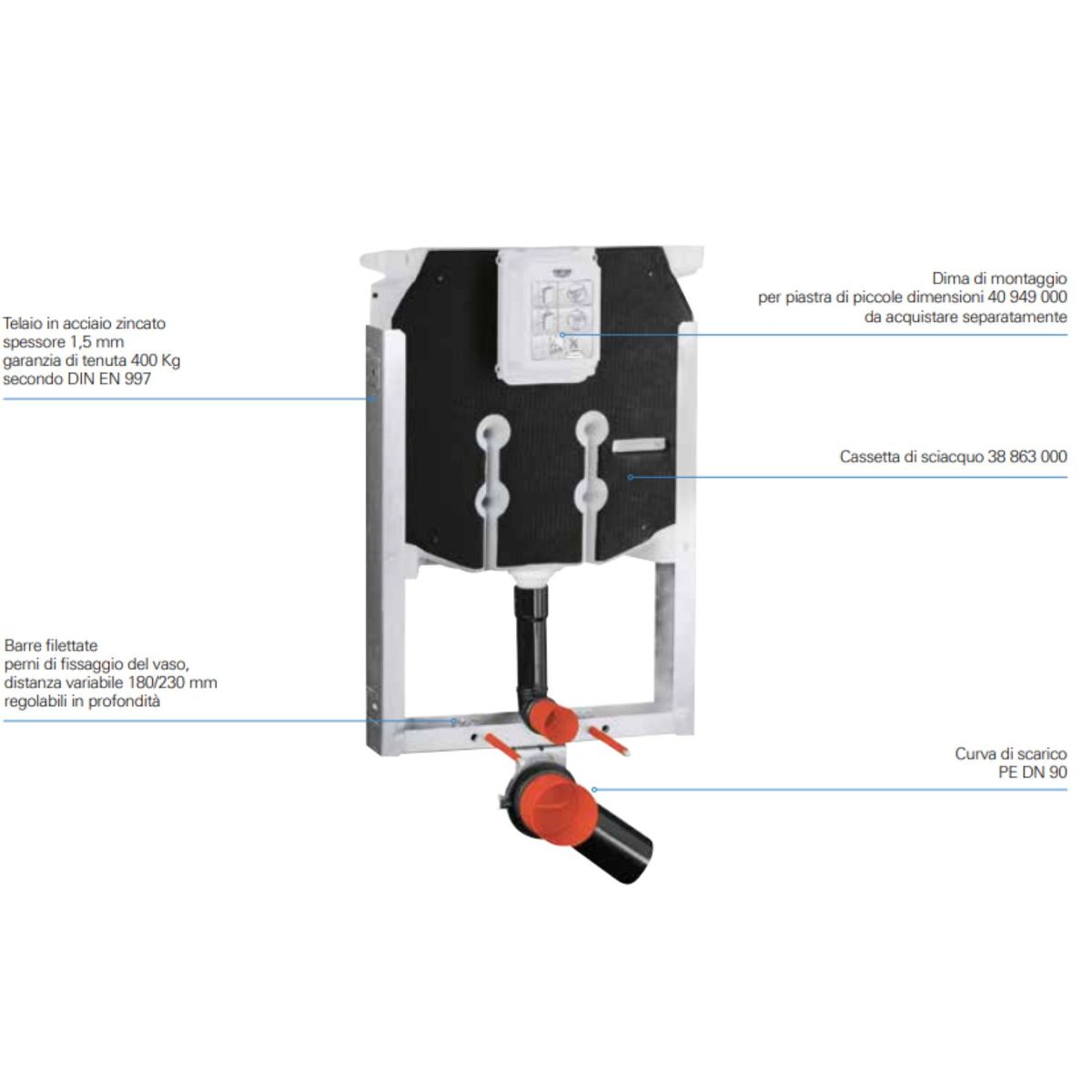

Package Contents:
• Built-in toilet cistern with hot-dip galvanized steel frame for wall-hung sanitary fixtures
• Flexible hose connection
• 1/2" angle tap
• 4 fixing brackets
• 2 vase fixing pins
• 1 PE drain bend DN 80
Not included: control plate, mounting template for small control plate or other
