Description

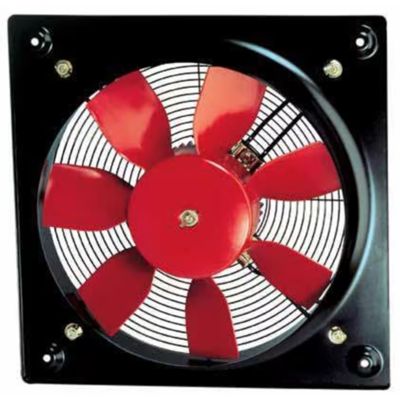

Axial wall fan with fiberglass reinforced plastic impeller, single-phase motor, IP65, Class F with built-in thermal protection and terminal box with capacitor included.
4 pole motor.
Datasheet
Technical specifications:
• Speed 1380 rpm
• Mouth diameter 250 mm
• Maximum power consumption 77 W
• Maximum intensity 230 V 0.3 A
• Sound pressure levels 49 dB(A)
• Maximum flow rate 1090 m3/h
• Weight 5 kg
• Speed regulator REB-1 - RMB-1.5
