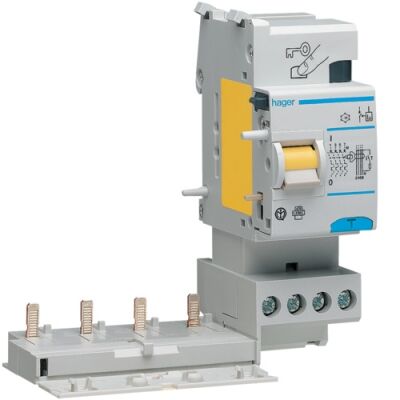

Modular differential block 4P 25A 0.03A AC 2M for 4M circuit breakers.
Description
Modular residual current circuit breaker Hager 4P 25A Idn 0.03A type AC.
The modular block can only be associated with Hager switches of the MXN, MYN, MBA, MCA, NBN, NCN, NDN, NRN, NSN series and MMN magnetic switches only.
Datasheet
Technical specifications:
• No. of poles 4
• Rated current 25A
• Idn 0.03A
• AC type
• Rated voltage 230-400V
• Compatibility with MXN, MYN, MBA, MCA, NBN, NCN, NDN, NRN, NSN series circuit breakers and MMN magnetic circuit breakers only.
• No. of EN50022 modules 2
Certifications:
• THERE IS
Properties
Producer:
Hager
No. poles:
4P
Rated current:
25A
Type:
AC
Idn:
30mA
Cerifications:
