Modular differential block 4P 63A 0.03AA[S] 3M for 4M circuit breakers.
Description

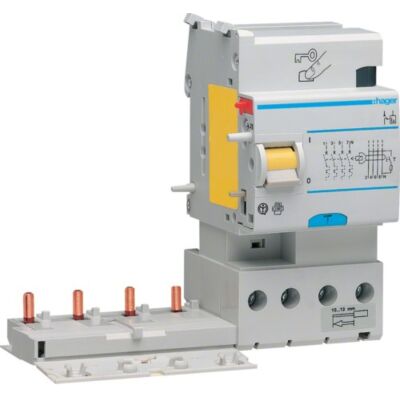

Hager 4P 63A Idn 0.03A type A[S] modular residual current circuit breaker.
The modular block can only be associated with Hager switches of the MXN, MYN, MBA, MCA, NBN, NCN, NDN, NRN, NSN series and MMN magnetic switches only.
Datasheet
Technical specifications:
• No. of poles 4
• Rated current 63A
• Idn 0.03A
• Type A[S]
• Rated voltage 230-400V
• Compatibility with MXN, MYN, MBA, MCA, NBN, NCN, NDN, NRN, NSN series circuit breakers and MMN magnetic circuit breakers only.
• No. of EN50022 modules 3
Certifications:
• THERE IS
Properties
Producer:
Hager
No. poles:
4P
Rated current:
63A
Type:
A[S]
Idn:
30mA
Cerifications:
