Description

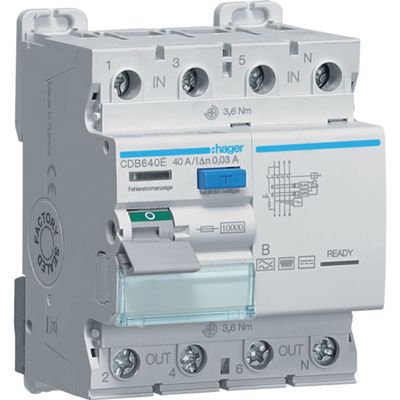

The Hager CDB640E is a 4-pole (3P+N) type B differential switch that can be accessorised with a rated current of 40 A and a sensitivity of 30 mA.
This device, compliant with DIN EN standards, integrates protection against earth faults in the presence of direct and variable currents, with a conditional breaking capacity of up to 10 kA and time delay for greater safety on power systems.
Thanks to the possibility of mounting accessories such as auxiliary contact blocks, coils and undervoltage releases, it offers flexibility and integration into modular DIN rail systems.
Datasheet
• Number of poles 4P
• Rated current 40A
• Idn 0.03A
• Type B
• Rated voltage 230/400V
• Compatibility with electrical auxiliaries YES
• Number of modules 4
• Protection class IP20
Properties
