Description

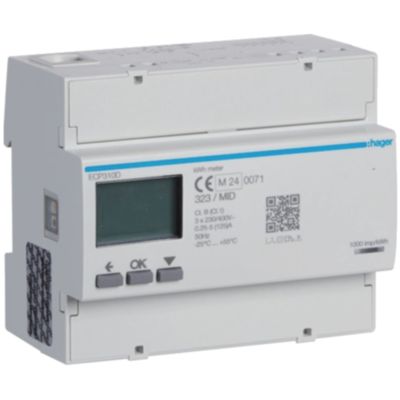

The Hager ECP310D is a smart meter for DIN rail installation (6 modules), designed to simultaneously measure active and reactive energy in three-wire or four-wire configurations.
It supports currents up to 125 A in direct measurement and voltages between 92–276 V (phase-neutral) and 160–480 V (phase-phase).
Compliant with the MID directive, it offers Class B (active energy) and Class 2 (reactive energy) accuracy, dual tariff with external tariff change management, 9-digit digital display with backlight, S0 pulse output and detailed monitoring of parameters such as active and reactive power, voltage, current and frequency.
Includes a resettable partial counter and reverse lock, with IP20 protection rating.
Datasheet
• Rated current 125 A (direct measurement), Imax = 125 A
• Measurement voltage phase-neutral 92–276 V, phase-phase 160–480 V
• Operating frequency 45-65 Hz
• Electronic pulse output type S0, 1–200 pulses/kWh
• Dual tariff (T1/T2) with external control, 9-digit backlit digital display, temporary reset panel, reversal lock
• Degree of protection IP20
• DIN rail mounting, 6 modules (107 × 92 × 60 mm)
• Displayed parameters kWh, kvarh, kW, kVA, V, A, PF, Hz and tariff
