Description

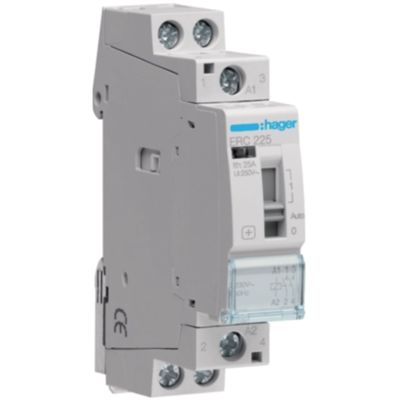

The Hager ERC225 is a compact and efficient contactor designed for the manual control of circuits up to 25 A.
It has two normally open contacts (2 NA), 230 V AC coil, and is optimised for low consumption as per the “Eco” philosophy.
Resistant and reliable, it guarantees a long operating life (100,000 mechanical operations, 30,000 electrical cycles) with insulation up to 250 V and impulse withstand up to 4000 V.
Datasheet
• Contact type 2 NA (normally open)
• Rated current 25 A (AC-7a/AC-7b category)
• Control voltage 230 V AC
• Rated operating voltage 230 V AC
• Insulation voltage (Ui) 250 V
• Impulse withstand voltage (Uimp) 4000 V
• Number of modules 1 DIN module (17.85 mm)
• Inrush power consumption 10.70 VA
• Total dissipated power 4 W
• Mechanical life 100,000 operations
• Electrical life 30,000 cycles
• Flexible conductor cross-section 1–6 mm²
• Rigid conductor cross-section 1–10 mm²
• DIN rail mounting, 1 module
• Operating temperature –10 °C +50 °C
• Degree of protection IP20
