Description

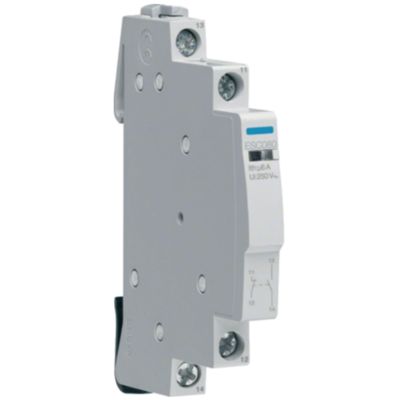

The Hager ESC080 is an auxiliary contact designed for snap-on mounting on a DIN rail (0.5 modules), featuring one normally open (NO) and one normally closed (NC) contact.
It supports a nominal current of 6 A at 240 V AC, offers nominal insulation (Ui) of 240 V, and allows connection via screw terminals for conductors up to 6 mm².
With a power dissipation of just 0.10 W and compact dimensions (83 × 11 × 60 mm), it is ideal for monitoring the status or reporting the behavior of switches or relays.
Datasheet
• Contact type 1 NO + 1 NC
• Rated current 6 A
• Rated operating voltage (Ui) 240 V AC
• Number of modules 0.50 DIN module
• Connection type: screw terminals
• Flexible conductor cross-section 1–6 mm²
• Rigid conductor cross-section 1–6 mm²
• Total dissipated power 0.10 W
• Dimensions (H × W × D) 83 × 11 × 60 mm
• Operating temperature –10 °C +50 °C
