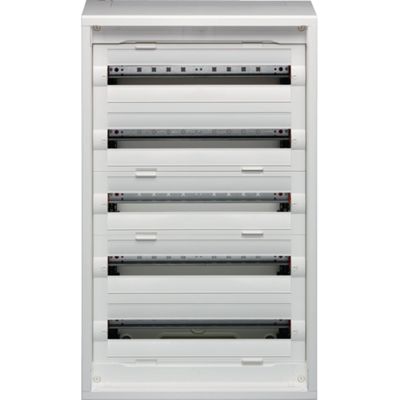

Hager FD52LN - panel without door 90x55 120M VegaD

SKU: HAGFD52LN

Barcode: 3250612548590

Brand: Hager

VegaD wall-mounted cabinet with a height of 900 mm, equipped for 120 DIN modules, protection degree IP30, insulation class II, without door

€516.03pcs

Other supplier availability Other supplier availability Other supplier availability Other supplier availability

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

VegaD series distribution board, designed for wall installation, equipped for 120 DIN modules (5 rows of 24 modules).

Constructed from a combination of metal and white RAL 9010 plastic, it offers IP30 protection, class II insulation and IK07 impact resistance.

It is not equipped with a door or neutral or earth terminals, the maximum nominal current is 160 A, with walls thickness of approximately 1 mm.

• VegaD Series

• Equipped wall-mounted panel type (without door)

• DIN 120 modules (5 rows × 24 modules)

• Rated current (In) 160 A

• IP30 protection

• Class II insulation

• IK07 impact resistance

• RAL 9010 color (pure white)

• Material metal/plastic

• Wall mounting

• Wall thickness approximately 1 mm

Cerifications:
