Description

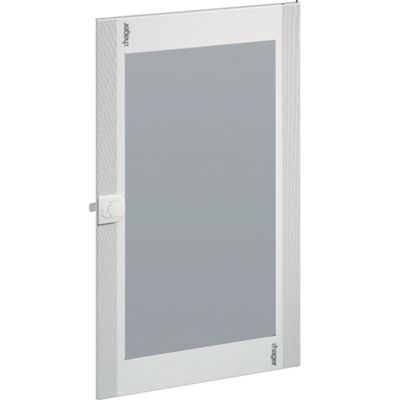

Transparent door in RAL 9010 painted steel, designed for the 120-module (5-row) VegaD series panels, equipped with 3 mm safety tempered glass fixed with polyurethane adhesive, allows inspection of the contents without opening.
It has a reversible opening (right/left), a concealed handle and adjustable quick-release hinges.
It guarantees IP40 protection with the door mounted and class II electrical insulation.
It is supplied in a pack of 1, perfect for recessed or surface installations.
Datasheet
• Dimensions 850 × 500 mm
• Material: RAL 9010 painted steel
• Tempered glass, 3 mm, glued with polyurethane adhesive
• Reversible opening (R/L), with quick-release hinges
• Retractable handle, replaceable with lock (accessory)
• Degree of protection IP40 (door mounted)
• Class II insulation
• Compatibility with 120-module VegaD panels (5 rows)
