Description

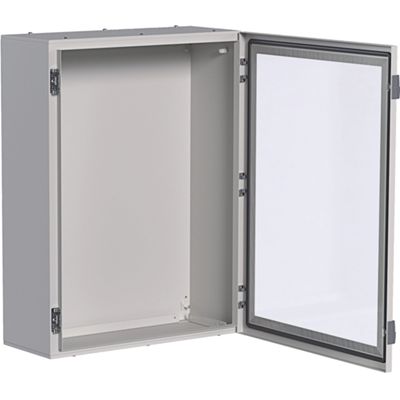

The Hager FL173A is a modular cabinet from the Orion Plus series made of painted steel (RAL 7035).
It is designed for wall installation and features a lockable transparent door, allowing inspection without opening.
The external dimensions are 800 × 600 × 250 mm, it offers high environmental protection thanks to the IP65 degree (dust and water jets), class I insulation and IK10 mechanical robustness.
It supports currents up to 250 A and is ideal for both residential and commercial environments.
Datasheet
• Series/Material Orion Plus, painted steel
• External dimensions 800 × 600 × 250 mm (H × W × D)
• IP65 protection; IK10
• Insulation class I
• Transparent door with lock (3-sided locking)
• Wall mounted; outdoor use: no
• Internal files 5
• Rated current (In) 250 A
• Light grey colour RAL 7035
