Description

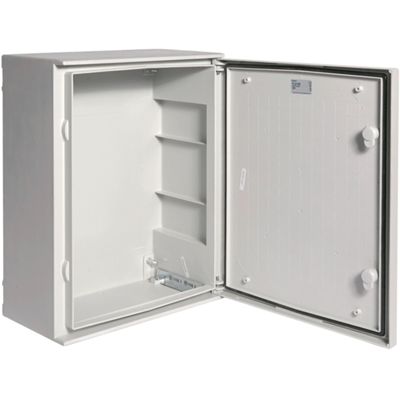

The Hager FL213B is a reinforced polyester enclosure, part of the Orion Plus series, featuring an opaque door for applications where internal visibility is not required.
Designed for surface-mounted installation, it offers high IP65 environmental protection, ensuring resistance to dust, water and external agents.
The cabinet has external dimensions of 500 × 400 × 200 mm, with class II insulation, robustness and durability.
The material is RoHS compliant and the design allows for safe and clean installation of internal components.
Datasheet
• Orion Plus Series (reinforced polyester)
• Cassette type with blind door
• Surface-mounted installation
• External dimensions 500 × 400 × 200 mm
• IP65 protection rating
• Class II insulation
• Rated current up to 630 A
• Triangular insert lock (with Allen key)
• Light grey colour (RAL 7035)
• Mechanical resistance IK 10
