Description

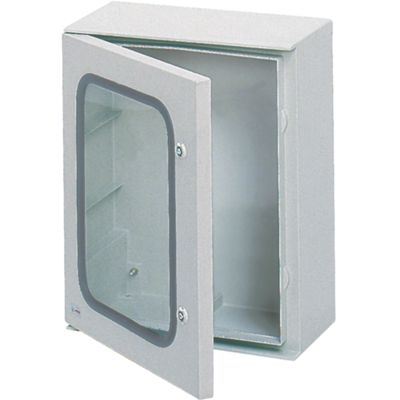

The Hager FL254B is a reinforced polyester enclosure, part of the Orion Plus range, featuring a transparent door.
Perfectly suited to indoor and outdoor spaces, it offers IP66 protection against dust and water jets, and IK08 mechanical resistance.
The cabinet is built for surface-mounted installation, with class II insulation.
The model complies with EN 60439-1, EN 62208, EN 50298 standards and includes a triangular lock for security.
Datasheet
• Polyester cassette type with transparent door (Orion Plus)
• External dimensions 350 × 300 × 160 mm
• IP66 protection rating (high protection against dust and water)
• Mechanical resistance IK08
• Class II insulation
• Surface-mounted
• 3-sided triangular insert lock, possibly 7 mm
• Reference standards EN 60439-1, EN 62208, EN 50298
• Reinforced polyester material
