Description

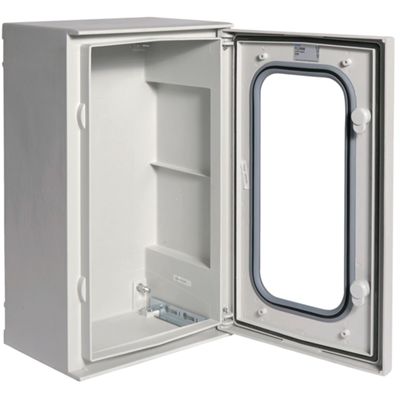

The Hager FL259B is a modular electrical panel from the Orion Plus series, made of glass-fibre reinforced polyester.
It features a transparent door and key lock on three sides (7 mm), making inspection possible without opening.
The dimensions are 500 × 300 × 200 mm (height × width × depth), with 3 mm thick walls.
It offers an IP66 protection level, thanks to which it is resistant to dust and strong jets of water, and complies with insulation class II.
Its mechanical resistance is IK08, guaranteeing robustness. It is suitable for both residential and industrial use, including outdoor use.
Datasheet
• Orion Plus Series
• Fiberglass reinforced polyester material
• Dimensions 500 × 300 × 200 mm (H × W × D)
• Side thickness approximately 3 mm
• Transparent door with triangular key lock (3 sides, 7 mm)
• IP66 protection rating (dust and water jets)
• Class II insulation
• Impact resistance IK08
• Surface-mounted; outdoor use permitted
• Rated current 125 A
• DIN modules 30 modules (3 rows of 10 modules) approximately
• Light grey colour, RAL 7035
• RoHS environmental compliance, REACH declaration available
