Description

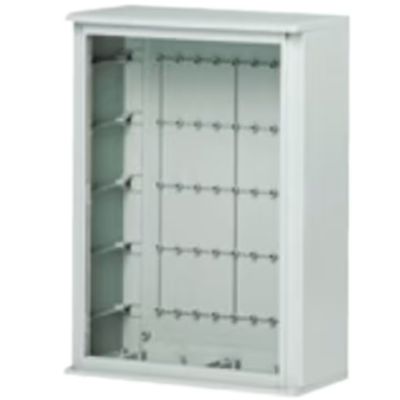

The Hager FL307BA is a modular cabinet from the Orion Plus line, made of glass-fibre reinforced polyester, ideal for wall installation (even in protected outdoor environments).
It offers IP65 environmental protection, class II insulation, and IK10 mechanical robustness. The body is approximately 3 mm thick and has no door.
The external dimensions are 1150 mm high, 850 mm wide and 300 mm deep.
Inside it has 7 modular rows and supports a nominal current (In) of 250 A.
Perfect for residential or commercial applications where high resistance and protection are required.
Datasheet
• Material: Fiberglass reinforced polyester
• Dimensions 1150 × 850 × 300 mm
• Wall thickness approximately 3 mm
• IP65 protection; IK10 impact resistance
• Class II insulation
• Door type absent (door to be added if necessary)
• Rated current In 250 A
• Internal files 7
• Wall mounting; outdoor use permitted
• Light grey colour (RAL 7035)
