Bottom panel (blind panel) in galvanized steel, useful dimensions approx. H 600 mm × W 750 mm, for Quadro systems (Quadro 4, 5, Plus/Evo)
Description

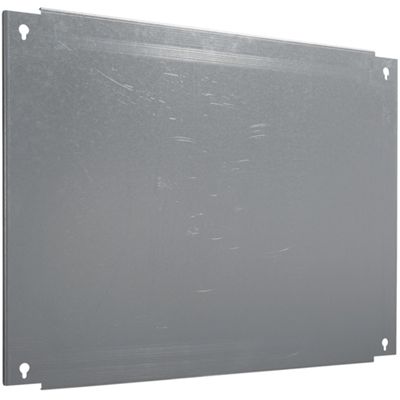

The Hager FM496 model is a back panel made of galvanized steel with a powder finish, designed to aesthetically and structurally complete the rear internal part of the modular electrical panels of the Quadro series (both 4 and 5).
With an effective height of 600 mm, a width of 750 mm, and a reduced thickness that guarantees resistance and perfect integration, it is designed to guarantee a complete enclosure respecting RoHS, REACH and halogen-free environmental standards.
Datasheet
• Fixed bottom panel type (blind panel)
• Material: galvanized steel with powder coating
• Nominal dimensions H 600 mm × L 750 mm
• Compatibility Quadro 4, Quadro 5, Quadro Plus/Evo
• Galvanized surface (not perforated)
• RoHS, REACH environmental compliance, halogen-free
Properties
Cerifications:
