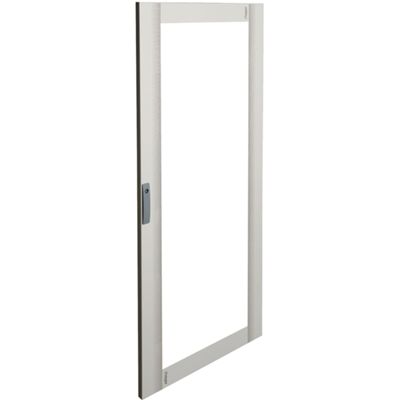

Transparent front door in RAL 9010 painted steel with lock, dimensions H 1260 × W 700 × D 54 mm, protection degree IP55, for the Quadro 5 system
Description
The Hager FM545 is a hinged front door that allows visual inspection of the inside of the panel without opening the compartment.
It is designed for locking the disconnector and equipped with two locks.
The powder-coated steel structure (RAL 9010) guarantees IP55 protection, offering safety, visual monitoring and aesthetic continuity to the Quadro 5 series panels.
Datasheet
• Dimensions 1260 × 700 × 54 mm
• Steel material and finish, powder coating RAL 9010 (pure white)
• 2 locks, provision for disconnector locking
• IP55 protection, class I insulation
• Compatibility with Quadro 5 system
• RoHS environmental compliance, with REACH declaration available
Properties
Cerifications:
