Description

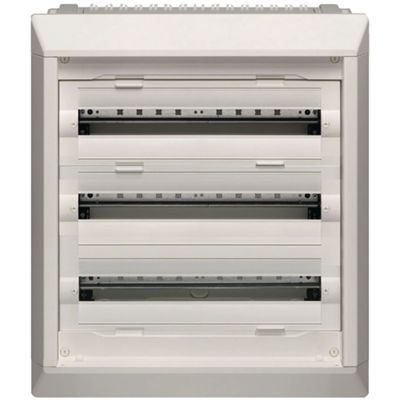

The Hager FU32LN is a modular distribution cabinet from the VegaD series, designed for flush-mounted installations.
It allows flexible and safe wiring of up to 72 DIN modules (3 rows of 24 modules), and is designed for internal equipment, without door included.
Made of white painted steel (RAL 9010), it guarantees IP30 environmental protection and IK07 impact resistance.
It is wall-mounted, with a recessed depth of 110 mm and a total depth of 150 mm, making it ideal for discreet and professional installations.
It complies with RoHS directives and has REACH environmental declarations.
Datasheet
• Hager FU32LN model – VegaD built-in equipped
• Type to be equipped, without door
• Capacity 72 DIN modules (3 rows × 24 modules)
• External dimensions height 687 × 600 × 150 mm
• Installation depth 110 mm
• Material: painted steel (RAL 9010)
• IP30 protection (front), IK07 (shock)
• Rated current 160 A
• 4 cable inputs
• Built-in installation
• RoHS certifications, REACH declaration available
