Description

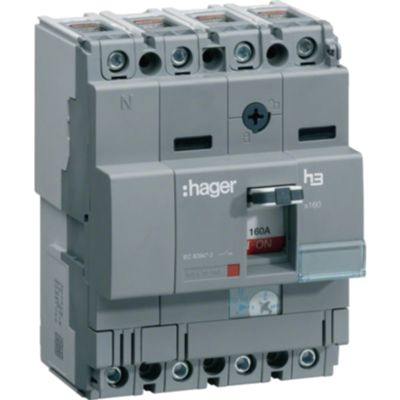

The Hager HCA161H switch is a load switch from the h3 x160 series, designed with a fixed 4-pole configuration and front terminals.
Unlike a circuit breaker, this device does not have a release, and is specifically intended for the disconnection function, i.e. the isolation of a circuit.
With a rated current of 160 A and a short-time withstand current (Icw) of 2 kA, it complies with the IEC 60947-3 standard and is perfectly suited to industrial and tertiary sector contexts.
Datasheet
• Rated current 160 A
• Rated short-time withstand current Icw 2 kA
• Rated voltage Ue 440 V
• Insulation voltage Ui 690 V
• Impulse withstand voltage Uimp 8 kV
• Number of poles 4
• Release type Absent
• Degree of protection (IP) IP4X
• Flexible conductor cross-section 4 - 70 mm²
• Front mounting position
• Connection type: screw terminal
• Dimensions 130 x 100 x 68 mm
