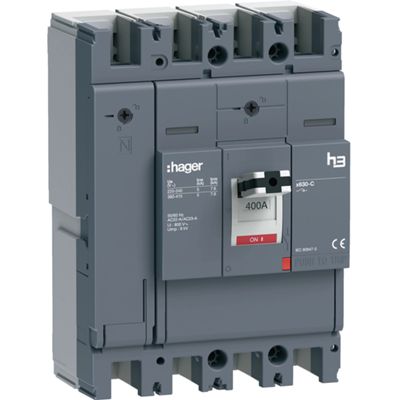

H3+ 4-pole, 400 A, front-mounted, manually operated switch disconnector for industrial and tertiary installations
Description
The Hager HCJ401AR is a load switch from the h3+ series (frame X630), designed for fixed installation.
It features front terminals for easy wiring, a rated current of 400 A, an operating voltage of up to 415 V, and a robust breaking capacity (Icw) of 7.6 kA compliant with IEC 60947-3 standards.
It is designed to ensure reliable circuit separation in industrial or tertiary environments, where safety and operational robustness are required.
Datasheet
• Number of poles 4P
• Rated current 400 A
• Rated operating voltage 415 V AC
• Short-time withstand current (Icw) 7.6 kA
• Fixed execution assembly, front terminals
• Reference standard CEI EN 60947-3
• Recommended applications in industrial and tertiary plants
Properties
Producer:
Hager
No. poles:
4P
Rated current:
400A
Cerifications:
