Description

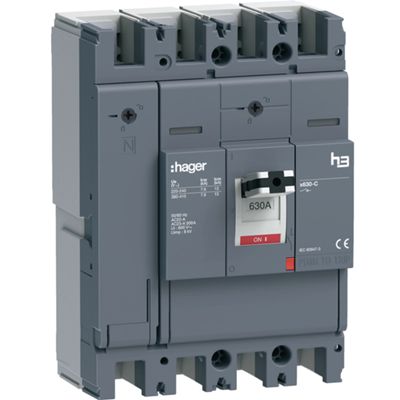

The Hager HCJ631AR is an h3+ load switch-disconnector on X630 frame, designed in fixed version with front terminals for quick installation.
It guarantees a nominal current of 630 A and withstands short-time currents up to 7.6 kA according to the IEC EN 60947-3 standard.
It is equipped with a lever control, lockable with a padlock, suitable as a main, maintenance or emergency switch, with IP40 front protection.
Highly suitable for industrial or commercial installations requiring reliable insulation.
Datasheet
• Number of poles 4P
• Rated current 630 A
• Rated operating voltage up to 415 V (max 690 V AC)
• Short-time withstand current (Icw) 7.6 kA
• Front lever control (toggle), lockable
• Front protection degree IP40
• Fixed installation, suitable as a main, maintenance or emergency switch
