Description

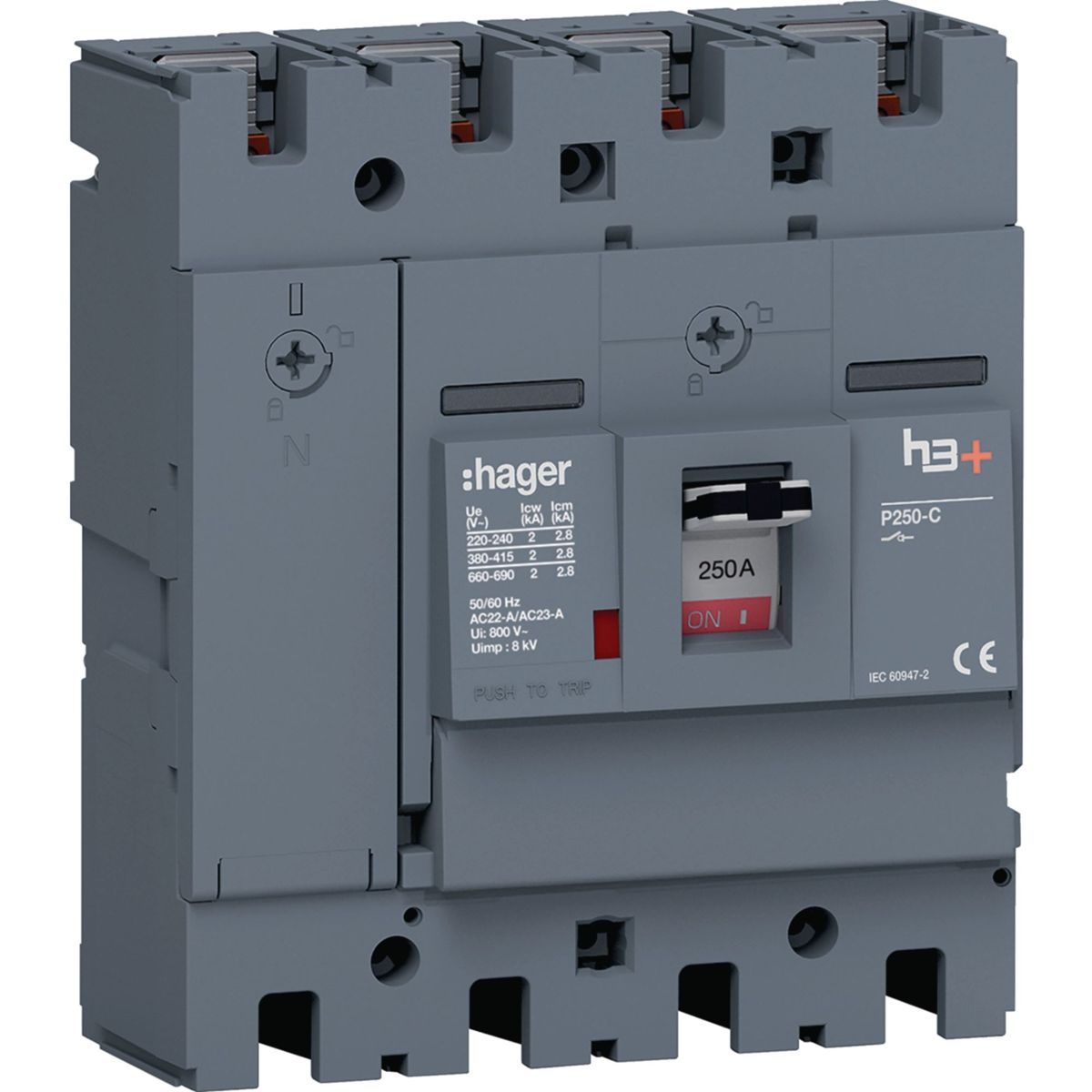

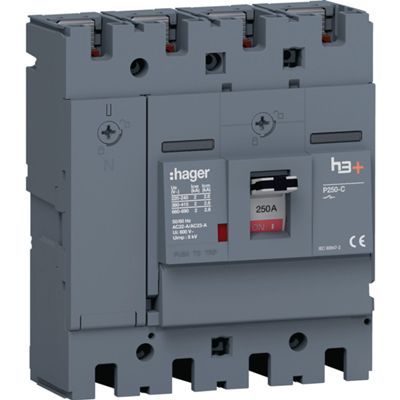

The Hager HCT251AR is a compact switch-disconnector from the h3+ (P250) series, designed to ensure safe circuit separation in manual mode.
Requiring only 1 DIN rail, it is intended for use as a main, maintenance or emergency switch, although it is not classified as a safety device.
It supports up to 250 A continuous and tolerates short-circuit currents (Icw) up to 3.6 kA according to IEC 60947-3.
Compliant with IEC requirements, the device can operate up to 690 V AC, a frequency of 50-60 Hz, and is lockable to prevent accidental operation.
Datasheet
• Number of poles 4P
• Rated current 250 A
• Rocker lever control
• Main switch, maintenance, emergency stop applications
• Rated operational voltage Ue 220–690 V AC
• Construction type fixed, built-in
• Front protection (IP rating) IP40
• Power results AC-23, 400 V → 254 kW
• Electrical life 10,000 cycles
• Mechanical life 40,000 cycles
• Dimensions (H × W × D) 165 × 140 × 97 mm
