Manual switch disconnector h3+ 4 poles, 630 A (frame P630), front, lockable, ideal for industrial and tertiary systems
Description

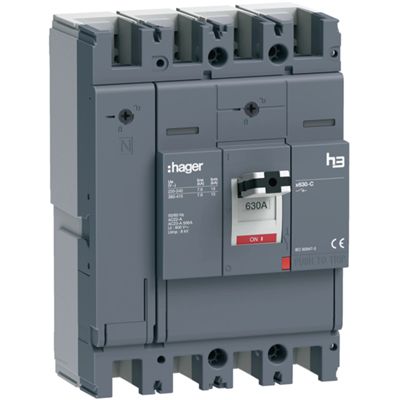

The Hager HCW631AR is a load-break switch from the h3+ series, made with a fixed structure and front terminals.
It supports a nominal current of 630 A and an operating voltage of up to 690 V AC, with a short-time current resistance of up to 7.6 kA according to the IEC 60947-3 standard.
It is equipped with a lever control with mechanical lock to ensure operational safety (for example in main or emergency switch mode), and has a front protection rating of IP40.
Datasheet
• Number of poles 4P
• Rated current 630 A
• Operating voltage 220–690 V AC
• Short-time withstand current (Icw) 7.6 kA
• Front lever control (toggle), lockable
• Front protection degree IP40
• Can be used as a main, maintenance or emergency switch
Properties
Producer:
Hager
No. poles:
4P
Rated current:
630A
Cerifications:
