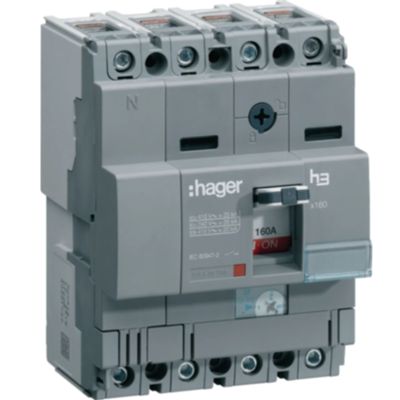

Product photos are indicative only
Description
The Hager HHA161H circuit breaker is a device from the h3 x160 series, featuring a 4-pole fixed design with front terminals.
Equipped with a thermomagnetic release (TM), it offers a nominal current of 160 A and a breaking capacity (Icu) of 25 kA at 400 V AC.
It is specifically designed to protect systems from faults due to overloads and short circuits, finding its ideal application in industrial and tertiary contexts where reliability and safety are priorities.
Datasheet
• Rated current 160 A
• Rated voltage Ue 440 V
• Breaking capacity Icu at 400 V AC 25 kA
• Number of poles 4
• Frequency 50 - 60 Hz
• Rated operating voltage AC 220 - 415 V
• Total dissipated power 43.80 W
• Electrical life 1000 cycles
• Number of maneuvers 4000
• Protection class (IP) IP4X
• Flexible conductor cross-section 4 - 70 mm²
• Front mounting position
• Connection type: screw terminal
• Dimensions 130 x 100 x 68 mm
