4-pole 400 A molded case circuit breaker, h3 curve, 25 kA breaking capacity, P630 TM format, solid protection for industrial installations
Description

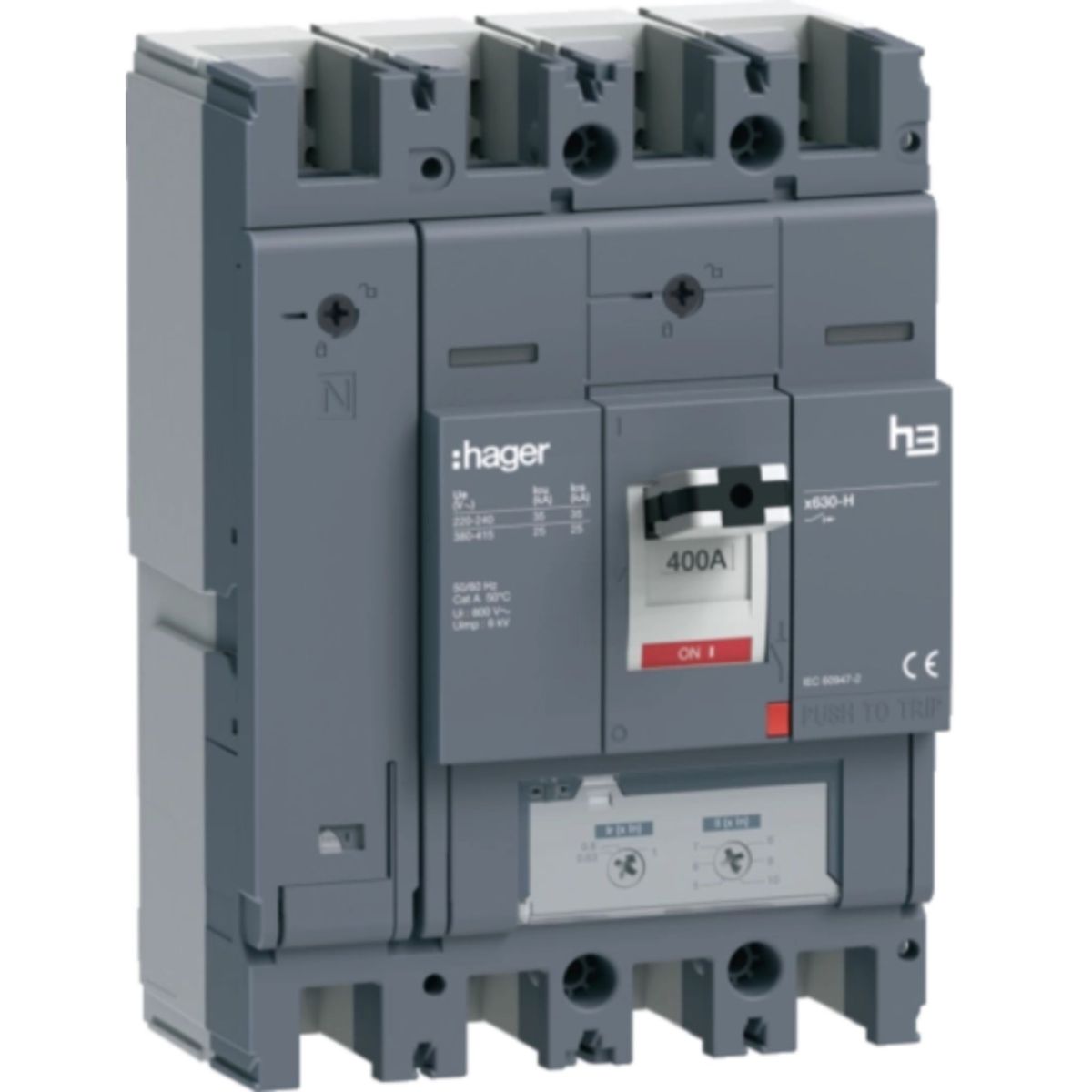

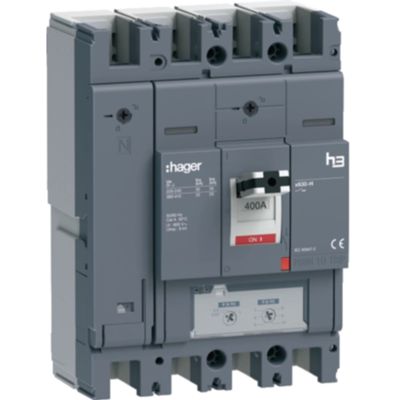

The Hager HHJ401DR is part of the H3+ range in the P630 frame configuration with thermal-magnetic trip (TM).
It ensures reliable protection against overloads and short circuits on three-phase plus neutral (4-pole) systems, supporting a nominal current of 400 A and a breaking capacity of 25 kA according to the IEC 60947-2 standard.
Ideal for distribution panels in industrial or commercial settings, it combines robustness and compactness in managing heavy loads.
Datasheet
• Number of poles 4 (3P + N)
• Rated current 400 A
• Thermomagnetic release type (TM), curve h3
• Breaking capacity (Icu) 25 kA
• Frame P630
• Application for overload and short circuit protection
• IEC 60947-2 Standard
• Compact size for industrial plants
Properties
Producer:
Hager
No. poles:
4P
Rated current:
400A
Curve:
C
Breaking power:
25000A
Cerifications:
