4-pole 630 A circuit breaker, h3+ curve, thermomagnetic trip, breaking capacity 25 kA, frame P630
Description

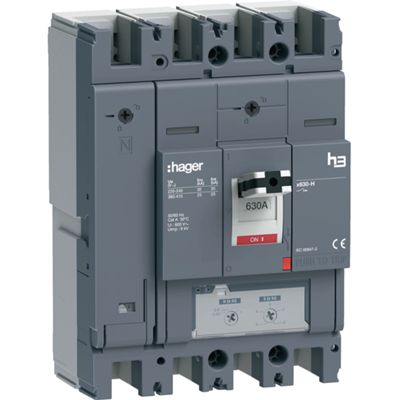

The Hager HHJ631DE is part of the h3+ range and is designed to provide advanced thermomagnetic protection in heavy industrial installations.
It supports a rated current of 630 A on 4 poles (including neutral), with an exceptional breaking capacity of 25 kA, compliant with the IEC 60947-2 standard.
Its compact design on P630 frame makes installation efficient and reliable in power panels.
Datasheet
• Number of poles 4 (3P + N)
• Rated current 630 A
• Thermomagnetic release type, h3+ series
• Breaking capacity (Icu) 25 kA
• Frame P630
• IEC 60947-2 Standard
• Application for overload and short circuit protection
Properties
Producer:
Hager
No. poles:
4P
Rated current:
630A
Breaking power:
25000A
Cerifications:
