Description

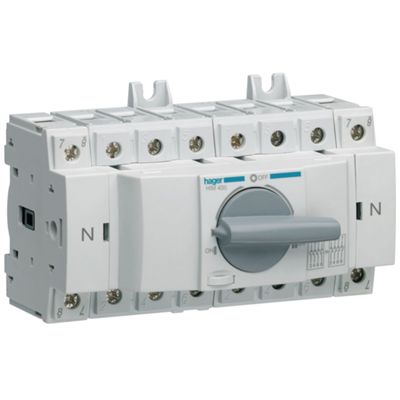

The Hager HIM406 is a modular switch designed for DIN rail mounting, with a 3-pole + neutral (3P+N) configuration and a rated current of 63 A.
It is equipped with a short-handled manual rotary control, with three stable positions (I‑0‑II), and offers IP20 protection.
This device is ideal for applications requiring safe switching between two circuits under load, ensuring isolation and operational safety.
Datasheet
• Number of poles 3P + Neutral
• Rated current 63 A
• Rated operating voltage 380–415 V AC
• Insulation voltage (Ui) 800 V
• Impulse withstand voltage (Uimp) 8000 V
• Conditional short circuit current Icc (with gl-gG fuses) 50 kA
• Total dissipated power 6 W
• Degree of protection IP20
• Rotary handle, short positioning
• Operating temperature –20 °C +70 °C
• Dimensions (W x H x D) 140 x 76 x 89 mm
Properties
