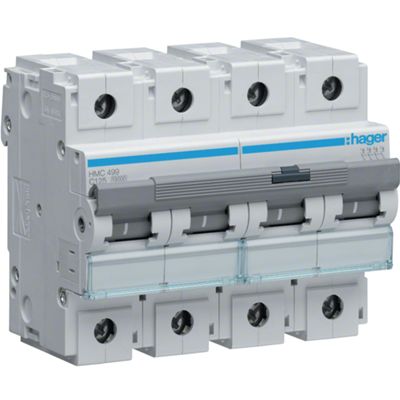

Hager HMC499 - 4P C125 15KA 6M circuit breaker

Product photos are indicative only

Hager HMC499 - 4P C125 15KA 6M circuit breaker

SKU: HAGHMC499
Barcode: 3250613230241
Brand: Hager
Hager HMF499 125 A quadruple-pole C-curve circuit breaker, 10 kA breaking capacity - 6 DIN modules
€398.85pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

The Hager HMF499 is a robust miniature circuit breaker designed for overload and short circuit protection in residential, commercial, and industrial applications. Featuring 4 poles with a C tripping curve, it is also ideal for loads with moderate inrush currents such as motors or lighting systems.

Certified with rated breaking capacity (Icn) and extended short circuit capacity (Icu) both equal to 10 kA, it can operate up to 400 V AC.

Thanks to compliance with the CEI EN 60898-1 and EN 60947-2 standards, it can be installed on a DIN rail with a footprint of six modules and supports rigid conductors up to 70 mm² and flexible conductors up to 50 mm², guaranteeing high performance in demanding environments.

Datasheet

• 4-pole circuit breaker type

• Intervention curve C

• Rated current In 125 A

• Rated breaking capacity Icn 15 kA (EN 60898)

• Extended breaking capacity Icu 15 kA (EN 60947-2)

• Rated operating voltage 400 V AC, frequency 50–60 Hz

• Screw terminal connectors with tightening torque 3.5–5 Nm

• Conductor cross-section: rigid up to 70 mm², flexible up to 50 mm²

• Operating life 4000 electrical cycles, 20000 mechanical operations

• Degree of protection IP20

• Dimensions 6 DIN modules (90 x 106 x 70 mm - height × width × depth)

Properties

Producer:
Hager
No. poles:
4P
Rated current:
125A
Curve:
C
Breaking power:
15000A
Cerifications:
Electrical expert
C E
IMQ
