Description

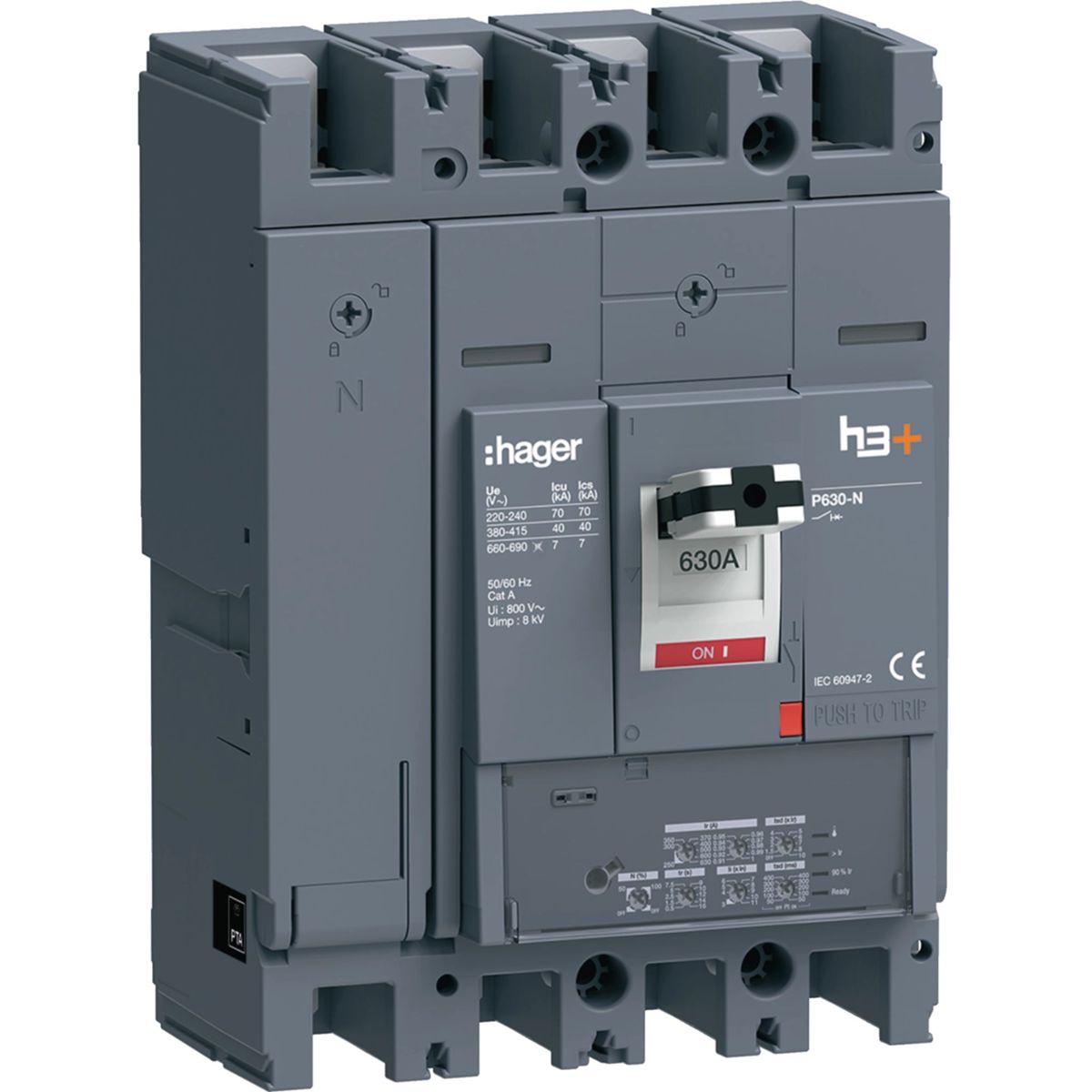

The Hager HNW631JR belongs to the h3+ range and offers advanced protection thanks to the adjustable LSI (Long-time, Short-time, Instantaneous) electronic trip unit, which allows precise and personalized control against overloads, short circuits and instantaneous faults.
With a P630 frame, it supports up to 630A and features front terminals for easy front installation.
It complies with the IEC EN 60947-2 standard and guarantees high reliability thanks to the nominal breaking capacity of 40 kA at 400 V, making it ideal for industrial and tertiary distribution systems.
Datasheet
• Number of poles 4 (3P+N), front terminals
• Rated current 630 A
• Rated operating voltage Ue up to 690 V
• Breaking capacity (Icu) at 400 V AC 40 kA; at 230 V AC up to 70 kA
• Frame P630
• Complies with IEC EN 60947-2
• Fixed installation
• Application in industrial and tertiary plants
• LED indicators, mechanical lock and possibility of configuration via switches (if provided)
