Description

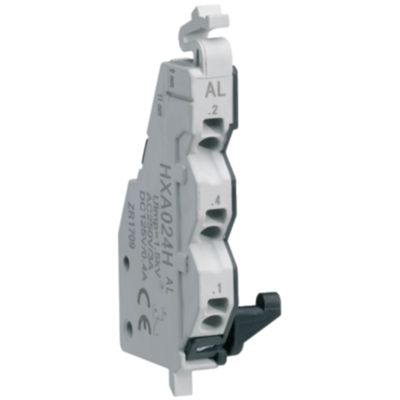

The Hager HXA024H is a compact auxiliary alarm contact for molded case circuit breakers of the H3/x P160, P250 and P630 series.
Remotely indicates the opening of the circuit breaker due to a fault, tripping by the coil or pressing the button.
It supports 3 A (230 V AC-15), is snap-on, equipped with spring terminals (0.5–1.25 mm²), IP4X protection and Uimp voltage up to 1500 V.
Datasheet
• Contact type 1 NO + 1 NC
• Rated current 3 A (230 V AC-15)
• Rated operating voltage 250 V AC
• Connection type Quick-Connect (spring clamps)
• Flexible conductor cross-section 0.5–1.25 mm²
• Rigid conductor cross-section 0.5–1.25 mm²
• Front snap-on mounting (Click mounting)
• Impulse withstand voltage (Uimp) 1500 V
• Power supply type AC/DC
• Total dissipated power 3 W
• IP4X protection rating
• Compatibility with H3/x P160, P250, P630 molded case circuit breakers (x/P160–x630 series)
