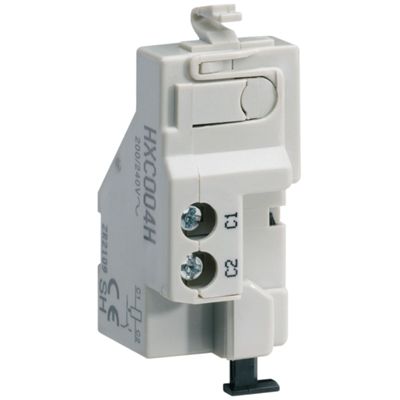

Shunt trip coil for molded case circuit breakers, with control voltage 200-240V AC, which allows remote opening of the circuit
Description
Shunt trip coil specifically designed for h3 x1000 molded case circuit breakers.
Its main purpose is to allow the switch to be opened remotely, by means of an electrical impulse with a voltage greater than 70% of the nominal voltage.
Connections are made via practical spring terminals.
After activation, the coil requires a manual reset, preventing accidental closing of the switch until reset.
Datasheet
• Inrush power consumption 3.36 VA
• Control and nominal operating voltage AC 220 - 240 V
• Control and nominal voltage in DC 0 - 0 V
• IP4X protection rating
• Connections Spring terminals for cables 0.5 - 1.25 mm²
Properties
Cerifications:
