Description

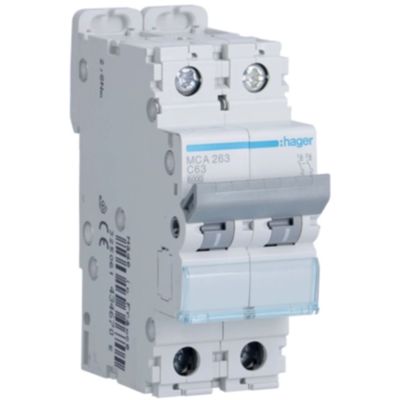

The Hager MCA263 is a 63 A, 2-pole, miniature circuit breaker designed for protecting residential and commercial circuits. Thanks to its C-curve, it offers reliable tripping in the presence of moderate inrush currents, ensuring protection against overloads and short circuits.
Compact and efficient, with only 2 DIN modules of space, it ensures compatibility with standard panels and simple installation on DIN rail.
Datasheet
• Model MCA263
• Type 2-pole magnetothermal circuit breaker
• Rated current 63 A
• Intervention curve C
• Number of protected poles 2P (no neutral)
• Rated voltage 400 V AC, 50–60 Hz
• Rated breaking capacity Icn 6 kA (IEC 60898‑1)
• 2 DIN module footprint (35 mm modules)
• IP20 protection rating
• DIN rail mounting, screw terminals
• Terminal section: 1-35 mm² rigid, 1-25 mm² flexible
