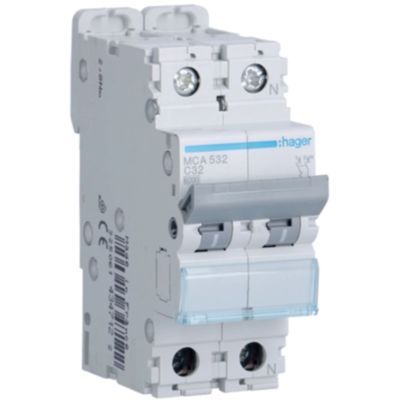

Hager MCA532 32 A miniature circuit breaker, C curve, 6 kA breaking capacity - 2 DIN modules
Description
The Hager MCA532 is a 32 A single-pole + neutral circuit breaker designed for protecting residential and commercial circuits. Thanks to its C-curve, it offers reliable tripping even with moderate inrush currents, ensuring protection against overloads and short circuits.
Compact and efficient, with only 2 DIN modules of space, it ensures compatibility with standard panels and simple installation on DIN rail.
Datasheet
• Type: 1 pole + neutral circuit breaker
• Rated current 32 A
• Intervention curve C
• Number of protected poles 1P+N
• Rated voltage 400 V AC, 50–60 Hz
• Rated breaking capacity Icn 6 kA
• 2 DIN module footprint
• IP20 protection rating
• DIN rail mounting, screw terminals
Properties
Producer:
Hager
No. poles:
1P+N
Rated current:
32A
Curve:
C
Breaking power:
6000A
Cerifications:
