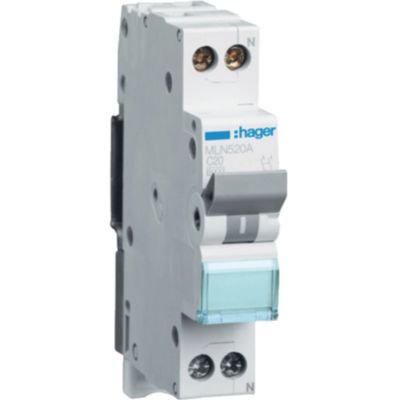

Hager MLN520A 20 A miniature circuit breaker, C curve, 6 kA breaking capacity - 1 DIN module
Description
The Hager MLN520A is a 20 A single-pole + neutral circuit breaker designed for protecting residential and commercial circuits. Thanks to its C-curve, it offers reliable tripping in the presence of moderate inrush currents, ensuring protection against overloads and short circuits.
Compact and efficient, with only 1 DIN module footprint, it ensures compatibility with standard panels and simple installation on DIN rail.
Datasheet
• Type: 1 pole + neutral circuit breaker
• Rated current 20 A
• Intervention curve C
• Number of protected poles 1P+N
• Rated voltage 230 V AC, 50–60 Hz
• Rated breaking capacity Icn 6 kA
• 1 DIN module footprint
• IP20 protection rating
• DIN rail mounting, screw terminals
Properties
Producer:
Hager
No. poles:
1P+N
Rated current:
20A
Curve:
C
Breaking power:
6000A
Cerifications:
