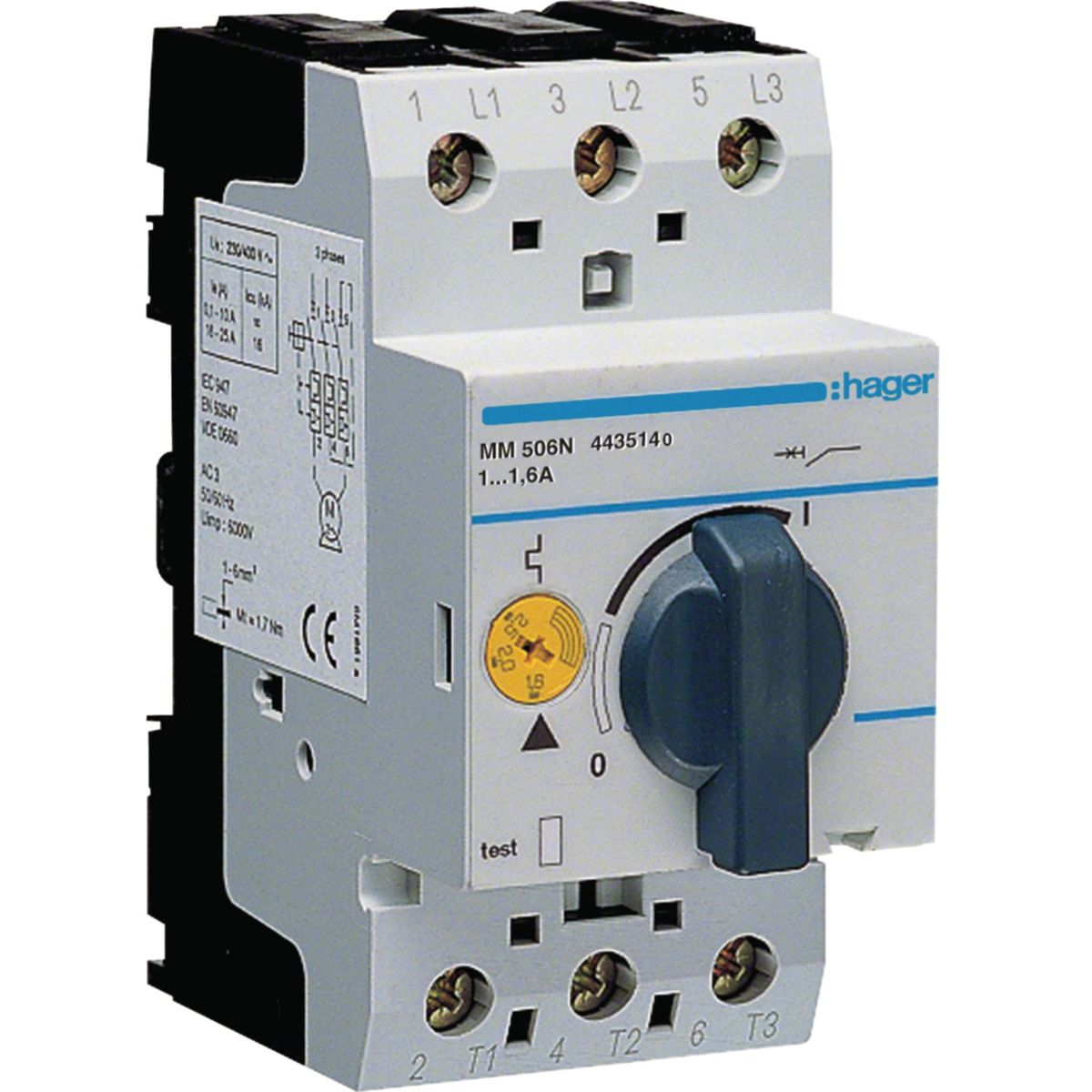

3-pole thermomagnetic motor protection switch, adjustable 1-1.60 A, DIN rail mounting (2.5 modules)
Description
3-pole thermomagnetic motor protection switch, suitable for protecting electric motors against overloads and short circuits.
Equipped with a rotary knob for tripping adjustment (1–1.60 A), phase failure detection and high interruption limit (150 kA), it ensures robustness and reliability in industrial and commercial installations.
Datasheet
• Adjustable tripping current 1/1.60 A
• Integrated thermal protection
• Sensitive to phase loss
• Thermomagnetic switch
• Rated voltage up to 690 V
• Short circuit breaking capacity 150 kA
• Screw connection
• Rotary control knob
• Number of poles 3
• Degree of protection IP20
• Dimensions (HxWxD) 140 × 45 × 75 mm
• DIN rail mounting
Properties
Cerifications:
