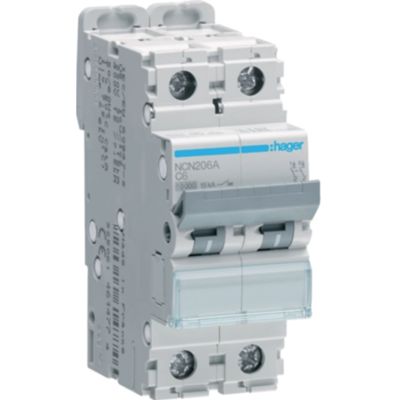

Hager NCN206A 6 A double pole C-curve circuit breaker, 10 kA breaking capacity - 2 DIN modules
Description
The Hager NCN206A is a 2-pole, 6 A circuit breaker designed for protecting residential and commercial circuits. Thanks to its C-curve, it offers reliable tripping in the presence of moderate inrush currents, ensuring protection against overloads and short circuits.
Compact and efficient, with only 2 DIN modules of space, it ensures compatibility with standard panels and simple installation on DIN rail.
Datasheet
• Model NCN206A
• Type 2-pole magnetothermal circuit breaker
• Rated current 6A
• Intervention curve C
• Number of protected poles 2P (no neutral)
• Rated voltage 400 V AC, 50–60 Hz
• Rated breaking capacity Icn 10 kA
• 2 DIN module footprint (35 mm modules)
• IP20 protection rating
• DIN rail mounting, screw terminals
Properties
Producer:
Hager
No. poles:
2P
Rated current:
6A
Curve:
C
Breaking power:
10000A
Cerifications:
