Description

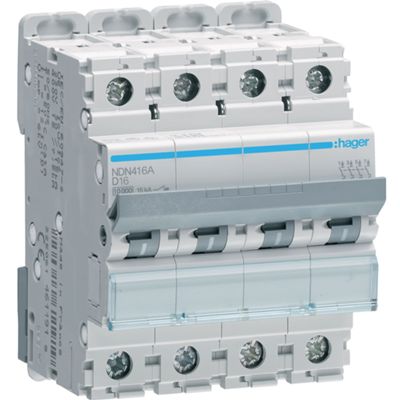

The Hager NDN416A is a 16 A, 4-pole, miniature circuit breaker designed for protecting residential and commercial circuits. Featuring a D tripping curve suitable for high loads (motors, transformers), it offers breaking capacity up to 15 kA (Icu) and 10 kA (Icn).
It is easily installed on DIN rail (4 modules footprint), supports cable cross-sections up to 35 mm² for rigid rail and 25 mm² for flexible cables.
Thanks to its mechanical resistance, a lifespan of 4000 electrical cycles and 20000 mechanical operations, it can be equipped with accessories such as auxiliary contacts, release under voltage and busbar.
Datasheet
• 4-pole circuit breaker
• Intervention curve D
• Rated current 16 A
• Breaking capacity Icn 10 kA (EN 60898-1), Icu 15 kA (EN 60947-2)
• Operating voltage 400 V AC
• Dimensions 4 DIN modules
• Operating life 4000 electrical cycles, 20000 mechanical operations
• Operating temperature -25 °C ÷ 70 °C
• Degree of protection IP20
• Compatible with accessories such as auxiliary contact, busbar, voltage release
