Description

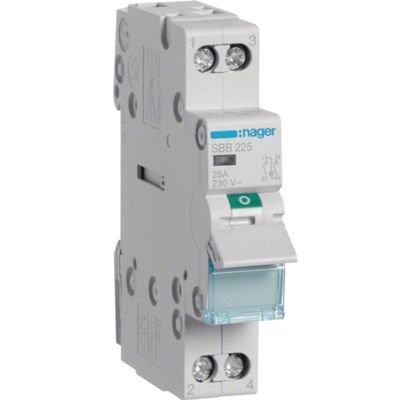

The Hager SBB225 is a 2-pole modular switch without neutral, equipped with an integrated LED indicator that indicates the switching status.
With a nominal current of 25 A, it is designed for easy control and disconnection in electrical panels, taking up only 1 DIN module.
Built to IEC 60947-3, it features screw connections and ensures reliability and easy operational visibility with a compact and durable design.
Datasheet
• Number of poles 2P (without neutral)
• Rated current 25 A
• Rated operating voltage 230 V AC
• Rated insulation voltage (Ui) 440 V
• Impulse withstand voltage (Uimp) 4000 V
• Connection type screw terminals (aligned)
• Number of DIN modules 1
• Degree of protection IP20
• Dimensions (H × W × D) 83 × 17.5 × 68 mm
• Operating temperature –20 °C to +70 °C; storage –40 °C to +80 °C
• Mechanical life 200,000 cycles
• Electrical life (AC21/AC22) 25,000 cycles
