Description

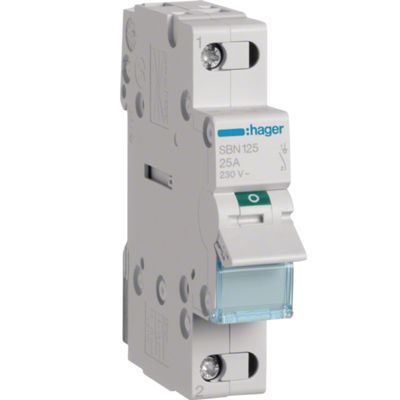

The Hager SBN125 is a modular single-pole 25 A switch designed for the manual switching and disconnection of electrical circuits in distribution boards.
It can interrupt currents up to 0.52 kA (Icm) and withstand temporary loads up to 0.37 kA (Icw), according to the IEC 60947-3 standard.
Mountable on DIN rail occupying a single module, it is robust, modular and supports accessories such as auxiliary contacts or locking/interlocking devices for technical and functional integration.
Datasheet
• Number of poles 1P (without neutral)
• Rated current 25 A
• Conditional short circuit current Inc with fuse 3000 A / 40 A gG
• Rated operating voltage Ue 230 V AC
• Impulse withstand voltage Uimp 4000 V
• Connection type screw terminals
• Number of DIN modules 1
• Degree of protection IP20
• Dimensions (H × W × D) 83 × 17.5 × 68 mm
• Number of NO contacts 1 (NC: 0)
• Operating temperature –20 °C to +70 °C; storage –40 °C to +80 °C
• Flexible conductor cross-section 1.5-10 mm², rigid 1.5-16 mm²
• Mechanical life (operations) 200,000 cycles
• Electrical life (AC21/AC22) 25,000 cycles
