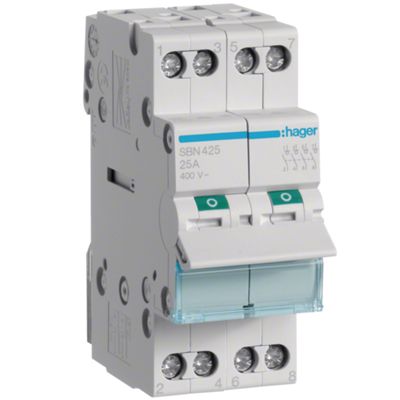

Modular manual switch disconnector 4 poles, 25 A, 2 DIN modules, ideal for simple and safe isolation of modular circuits
Description
The Hager SBN425 is a 4-pole non-automatic switch designed for modular electrical panels, offers a rated current of 25 A and is suitable for manual disconnection of circuits according to IEC 60947-3.
It has a rated making power (Icm) of 0.52 kA and can withstand short-time currents (Icw) up to 0.37 kA.
Robust and compact, it occupies only 2 DIN modules, ensures operational visibility and facilitates reliable installations.
Datasheet
• Number of poles 4P
• Rated current 25 A
• Category of use AC21/AC22
• Rated voltage 400 V AC
• Icm closing capacity 0.52 kA
• Short-time withstand current Icw 0.37 kA
• Number of DIN modules 2
• Degree of protection IP20
• Dimensions 8.3 × 3.5 × 6.8 cm
• Mechanical life 200,000 cycles
Properties
Producer:
Hager
No. poles:
4P
Rated current:
25A
Cerifications:
