4-pole, 80 A, 4 DIN module modular switch disconnector, ideal for manual isolation with robustness and compactness
Description

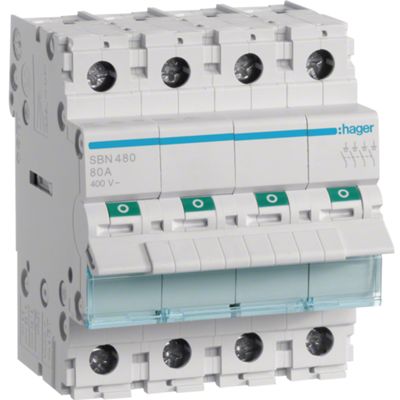

The Hager SBN480 is a 4-pole non-automatic switch (disconnector) with a rated current of 80 A and an operating voltage of up to 400 V AC.
Compliant with IEC 60947-3, it allows safe manual control of circuits in modular panels, with mechanical reliability and compactness (only 4 DIN modules).
Excellent for residential, commercial and industrial applications.
Datasheet
• Number of poles 4P
• Rated current 80 A
• Rated operating voltage 400 V AC
• Number of DIN modules 4
• Degree of protection IP20
• Mechanical life 60,000 cycles
• Connection with screw terminals, tightening torque 3.6 Nm
Properties
Producer:
Hager
No. poles:
4P
Rated current:
80A
Cerifications:
