Description

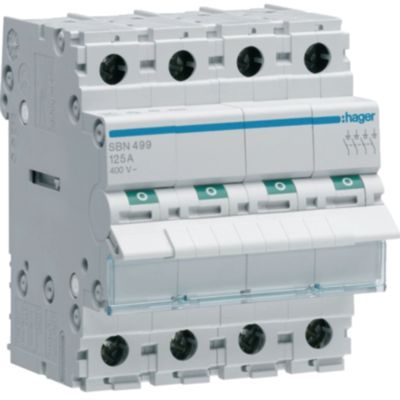

The Hager SBN499 is a modular non-automatic switch designed for the manual control and disconnection of circuits already protected against overloads or short circuits.
It has 4 poles, a nominal current of 125 A, and occupies 4 DIN modules, ideal for applications in professional distribution panels.
Equipped with a red/green mechanical indicator to display the contact status (ON/OFF), it offers robust screw connections and an IP20 protection rating.
It complies with the IEC 60947-3 standard and is suitable for voltages up to 400 V AC.
Datasheet
• Number of poles 4P (no separate neutral)
• Rated current 125 A
• Mechanical status indicator (red/green) for ON/OFF position
• Rated operating voltage (Ue) 400 V AC
• Insulation voltage (Ui) 440 V
• Number of DIN modules 4 modules
• Connection type screw terminals, neutral on the left
• Degree of protection IP20
• Dimensions (H × W × D) approx. 83×70×69mm
