Description

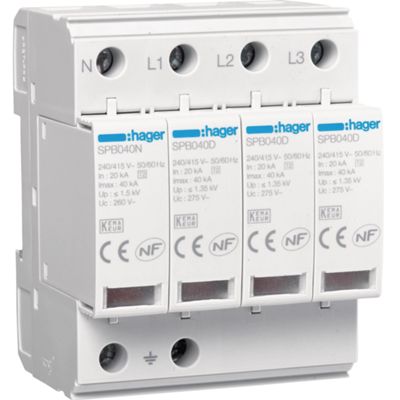

Type 2 (T2) surge protective device, designed for electrical systems with TN-S and TT configurations.
It guarantees a continuous operating voltage (Uc) of 275 V and protects the system with a protection level of up to 1 kV.
It is capable of absorbing nominal impulse currents up to 20 kA and maximum peak currents up to 40 kA, providing effective protection against transient overvoltages.
Mountable on a DIN rail in just 4 modules, it is compact and perfectly integrated into modular electrical panels.
Datasheet
• Number of modules 4
• Rated operating voltage AC 240-415 V
• Rated voltage AC 415 V
• 35 mm DIN rail mounting (TH35)
• Optical signalling
• Protection type T2, IEC classification
• Degree of protection IP20
Properties
