Description

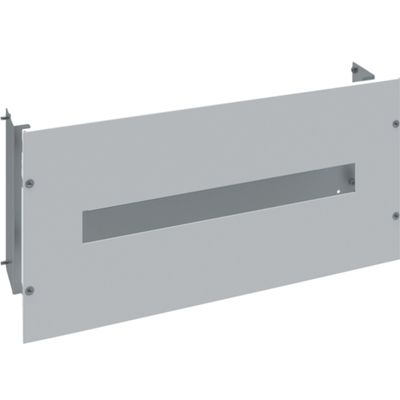

The Hager UC163X is a kit designed to install two X160 differential molded case switches in a vertical configuration.
It includes a metal front plate measuring 600 mm (width) × 300 mm (height) with a depth of 188 mm, painted in RAL 9010 color, and guarantees IP30 front protection.
It is designed for Quadro Evo modular systems (Quadro 4 and Quadro 5-Q+), offering a robust, clean and efficient solution for mounting protection components.
Compliant with RoHS and REACH environmental regulations.
Datasheet
• Intended use 2 X160 differential molded case switches (vertical)
• Dimensions 600mm (W) × 300mm (H) × 188mm (D)
• Material: RAL 9010 painted sheet steel
• Front protection degree IP30
• Compatible with Quadro 4 and Quadro 5-Q+ (Quadro Evo system)
• RoHS, REACH environmental compliance
