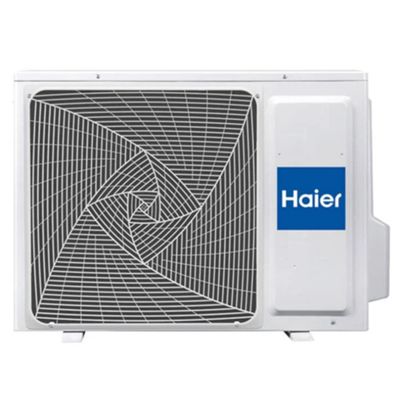

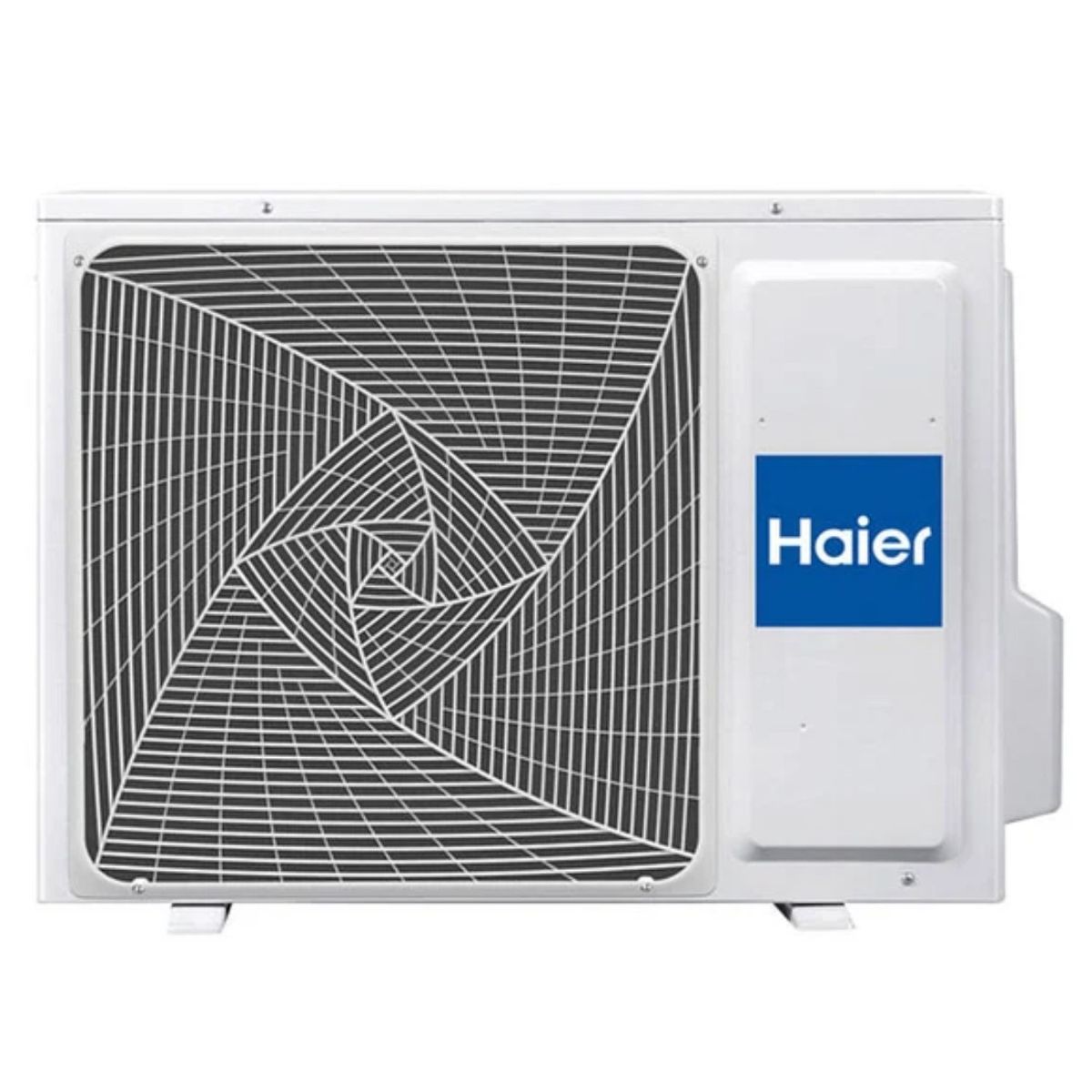

External unit for 1 split Haier air conditioner 3.5/4.2 kW with R32 gas included
Compatible with Expert, Flexis Plus, Consolle model units
Description
The Haier1U35S2SM1FA-2 is a monosplit outdoor unit designed to offer maximum comfort in every room of the home or office, in cooling and heating with reduced consumption. Thanks to the DC Hybrid Inverter technology and the single Rotary compressor , to guarantee efficient and silent operation.
The use of R32 refrigerant gas guarantees a reduced environmental impact and improved efficiency compared to traditional gases.
Thanks to its compact design , installation is easy even in small spaces, while the advanced control system ensures optimal operation in a wide range of external temperatures .

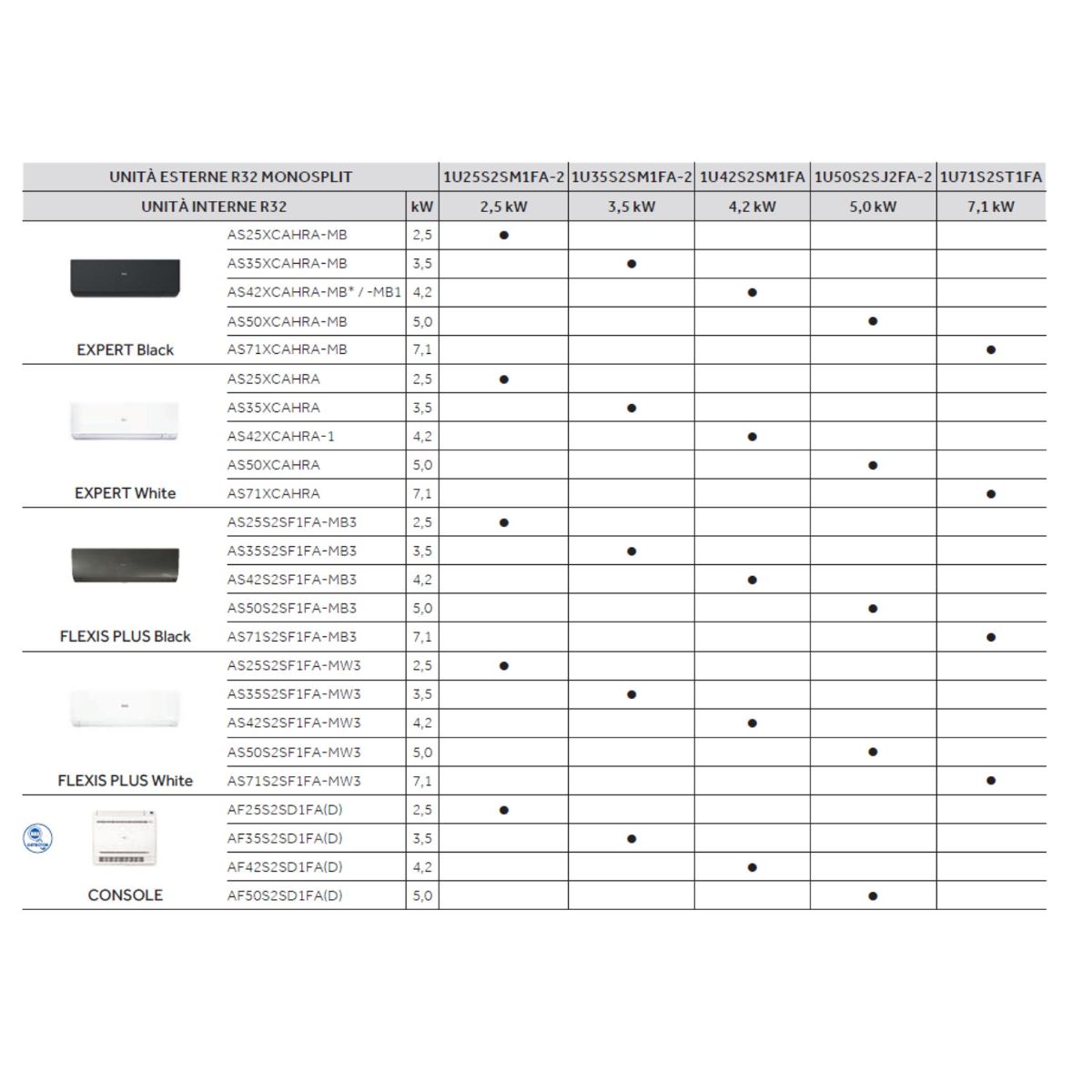

The unit is compatible with Expert, Flexis Plus, Consolle internal units
Nominal cooling capacity 3.5 kW
Nominal heating capacity 4.2 kW
Datasheet
• External unit type monosplit
• Number of internal units supported 1
• Cooling capacity 3.5 kW
• Heating capacity 4.2 kW
• DC Hybrid Inverter technology with single Rotary compressor
• Refrigerant gas R32
• Dimensions (L x W x H) 80 x 28 x 55.3 cm
• Weight 30 kg
• Sound power level 61 dB(A)
• Operating range in cooling min~max 21÷35°C (in) / -20÷43°C (out)
• Heating operating range min~max 10÷27°C (in) / -20÷24°C (out)
• Maximum pipe length 20 m
• Pipe length without additional load 7 m
• Refrigerant - Precharge 0.78 Kg - TCO2 Eq 0.52 - GWP 675
Package Contents
• Haier 1U35S2SM1FA-2 external unit
• User and installation manual
• Pipes, fittings and brackets not included
