External unit for Hisense dual split air conditioner 6.3/7 kW with R32 gas included
Energy class A++ / A+
Description

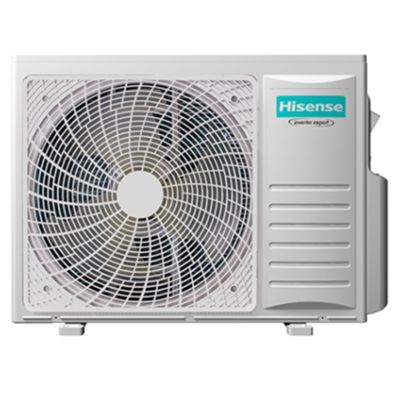

The Hisense 3AMW62U4RXC dual split outdoor unit is designed to offer maximum comfort in every room of the home or office, in cooling and heating with reduced consumption.
With the 3AMW62U4RXC outdoor unit, it is possible to connect up to 3 indoor units (wall-mounted, floor-standing, ducted or false ceiling) and they do not necessarily have to be installed in the same room or at the same time.
The outdoor unit is designed to work from -15°C to +50°C in cooling and from -20°C to +24°C in heating .
The use of R32 refrigerant gas helps the environment, contributing to lower energy consumption. The compact design makes it easy to install even in small spaces.
Nominal cooling capacity 6.3 kW
Nominal heating capacity 7 kW
Datasheet
• Type External unit trial split
• Number of internal units supported 3
• Cooling capacity 6.3 kW
• Heating capacity 7 kW
• Energy efficiency A++ in cooling, A+ in heating
• Refrigerant gas R32
• Dimensions (W x H x D) 86 x 67 x 31 cm
• Weight 49 kg
• Sound power level 63 dB(A)
• Operating range -15°C / +50°C in cooling; -20°C / +24°C in heating
• Maximum pipe length / maximum per unit 25/50 m
• Refrigerant - Precharge 1.46 Kg - TCO2 Eq 0.98 - GWP 675
Package Contents
• Daikin 3AMW62U4RJC outdoor unit
• User and installation manual
• Pipes, fittings and brackets not included
