Honeywell Y6H810WF1005 - Lyric T6 Wired Programmable Thermostat
Description
The Lyric T6 chronothermostat is designed for automatic time and temperature control in domestic heating systems. It is compatible with both ON/OFF (24V and 230V) and OpenTherm devices, such as gas boilers, combi boilers, and heat pumps. It also works with zone valves, but not with electric heating (240V).

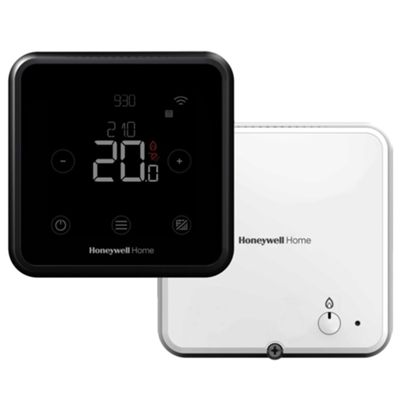

The T6 model consists of a thermostat and a receiver. Designed with installers in mind, the kit includes a receiver module that can be installed directly on the wall or in a wall box. Wiring can be routed from the bottom or rear by lifting the terminal block, making installation quick and easy. The thermostat features a high-contrast PMVA display with a dynamic text line and touch-sensitive buttons. The simple programming procedure makes installation easy and highly intuitive to use.
The Lyric T6 thermostat is ideal for users who want to remotely control the temperature of their home and is characterised by its modern design and ease of programming and use.
This model does not have a base
Datasheet
• Wall installation
• Complete with relay module
• Receiver with LED indicator and override button
• Warning messages for troubleshooting support
• 7-day or 5+2-day program
• OFF position integrates an anti-freeze protection that intervenes at at least 5 °C to prevent the pipes from freezing during the winter period
• Power supply ~20 VDC/300 mA via receiver
• Compatible with Apple Homekit, Amazon Alexa, IFTTT
