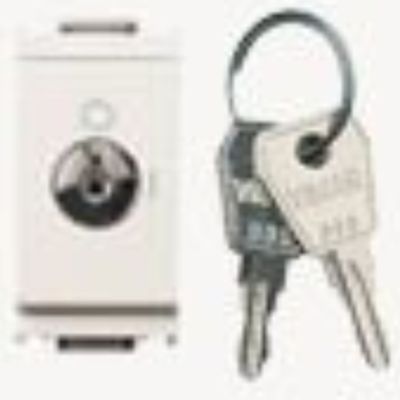

16 A bipolar switch with unified key 000, white color, for flush mounting, compatible with the Vimar Idea civil series
Description
16A double pole switch with unified key control 000, designed for applications requiring control accessible only by key, such as in industrial or public environments.
Made of halogen-free thermoplastic material, it offers IP20 protection and complete circuit disconnection.
It is compatible with the plates and supports of the Vimar Idea civil series.
Datasheet
• Rated current 16 A
• Rated voltage 250 V
• Key command type
• Grey colour (RAL 7015)
• Halogen-free thermoplastic material
• Flush mounting
• Snap-on fastening
• Degree of protection IP20
• Pollution degree II
• Conductor section 1.5 mm² - 4 mm²
• Connection type screw terminal
• Dimensions (W × H × D) 24.8 mm × 50.1 mm × 32.8 mm
• Lighting not present
• Matte, untreated surface
Properties
Model:
Vimar Idea
Number of modules:
1
Cerifications:
