Pedal mixer
Progressive
Wall installation
For hot/cold water
Description

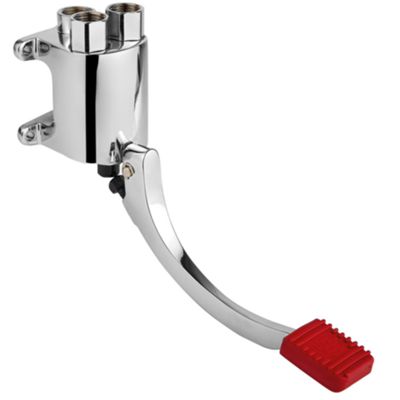

The wall-mounted progressive single-pedal mixer is an innovative and hygienic water dispensing solution, ideal for public spaces such as restaurants, bars, hospitals, and industrial kitchens. Crafted from chrome-plated cast brass, it guarantees strength and durability.
Its main innovation is the pedal-operated operation, which, in addition to offering maximum hygiene by avoiding manual contact, allows you to simultaneously control the flow and temperature of the water. By gradually pressing the pedal, you can obtain increasingly hotter water and increase the flow rate. The progressive closure is designed to prevent annoying "water hammer" effects, ensuring quiet and comfortable use.
Datasheet
• Wall installation
• Pedal body in chromed brass
• Zamak levers with rubber pedal covers
• Management of an exit
• Valve made of self-lubricating anti-scale material
• Operating pressure: 0.5 – 8 bar (recommended 3 - 5 bar)
• Temperature range: 5 – 65 °C
Package contains:
• 1 Progressive pedal mixer with red rubber
• Fixing kit
• Gaskets with 1/2” filter
Any other accessories for installing tubes/pipes, hoses and other items must be ordered separately.
